HE3B-M2PB Black Double 3-Position 16mm Rectangle Enabling Switch IDEC
by IDEC
SKU 490206
MPN: HE3B-M2PB
Availability:
10 in stock
Original price
£54.35
-
Original price
£54.35
Original price
£54.35
Inc VAT
£54.35
-
£54.35
Current price
£54.35
Inc VAT

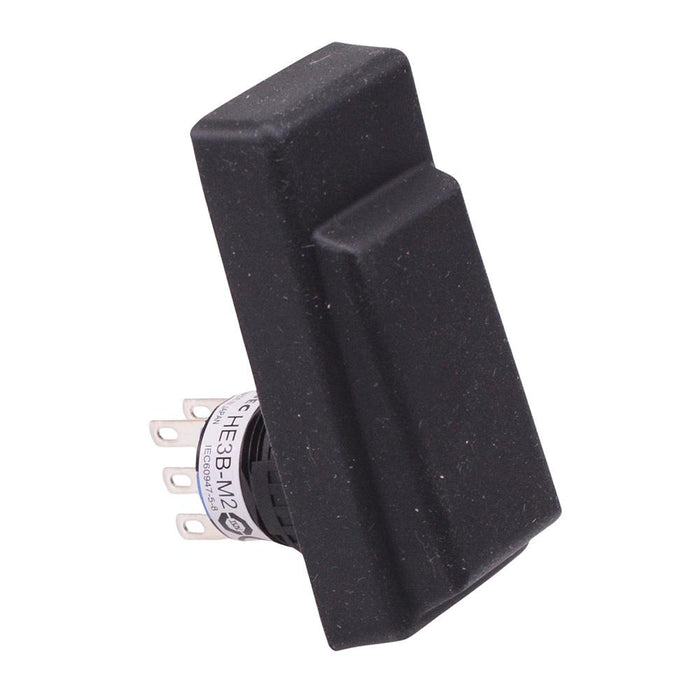

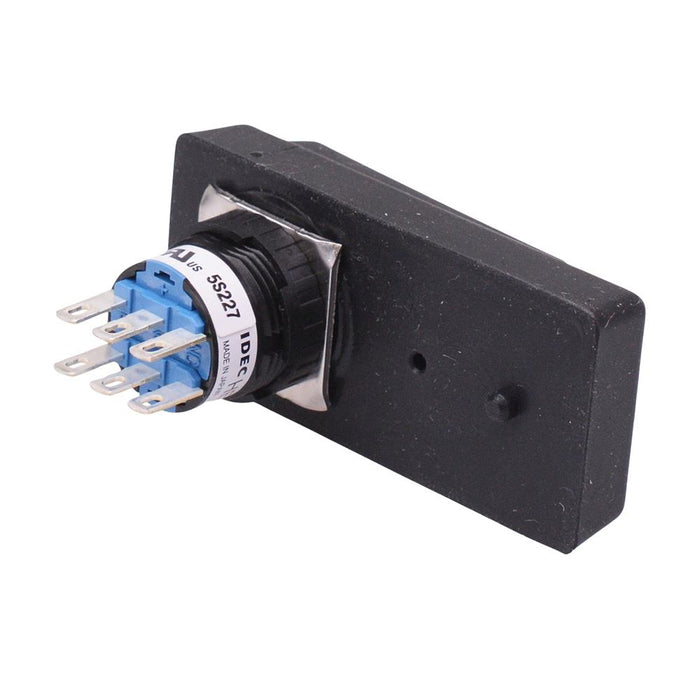

The HE3B-M2PB is an ergonoically designed rectangular enabling switch manufactured by IDEC, featuring a small package that is easy to mount. The switch features 3 positions and a high level of safety, breaking contact when the switch is squeezed or let go. The excellent reliability makes it ideal for use in robotic teaching pendants, complying to major industry regulations.
3 positions (Off-On-Off) 2 contacts DPDT Black silicone rubber boot Rating: 125V 1A, 30V 1A Solder terminals Degree of protection: IP65 Panel cut-out: 16.2mm Panel thickness: 0.5 to 4.0mm Dimensions: 37.5 x 22.2 x 51.2mm (height x width x length)
Specification
| Actuation | Momentary |
| Back order lead time | 130 Days |
| Colour | Black |
| Contact configuration | DPDT |
| Contact rating | 1A 125V |
| Current rating | 1A |
| Electrical life | 100,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -25°C to +60°C |
| Panel cut out | 16.2mm |
| Panel thickness | 0.5 to 4mm |
| Product series | HE3B |
| Protection level | IP65 |
| Switch operation | Off-On-Off |
| Terminal type | Solder |
| Voltage rating | 125V |
