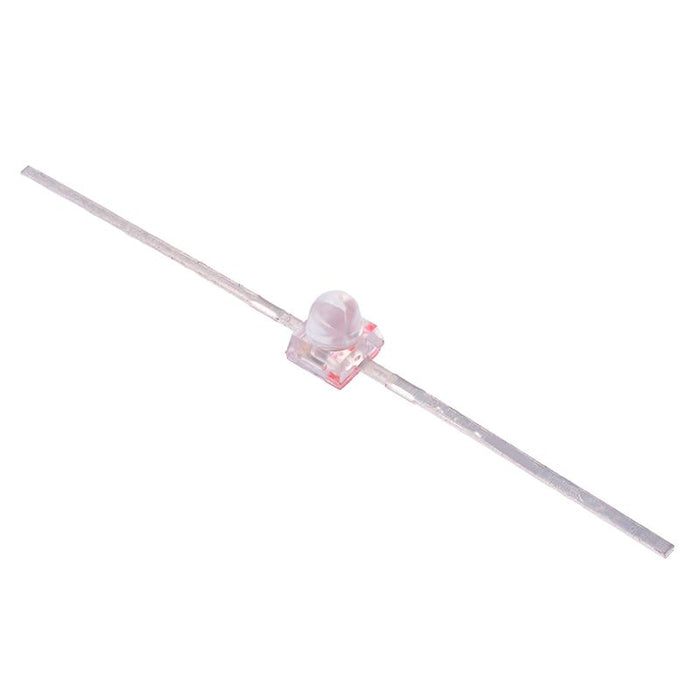

Green Subminiature Axial 1.8mm Water Clear LED 3000mcd 25°

SKU 484909

MPN: AR180PGC-G5-1B

Availability:
4262 in stock
Original price £0.22 - Original price £0.22
Original price
£0.22 Inc VAT
£0.22 - £0.22
Current price £0.22 Inc VAT
Green miniature LED featuring a 1.8mm water clear lens and double ended axial package. The LED is much smaller than leaded components making them suitable for smaller PCB sizes and higher packing densities. Common applications include backlighting and indication.

  • Luminous intensity: 3000mcd
  • Wavelength: 525nm
  • Viewing angle: 25°
  • Forward voltage: 3.0V
  • Forward current: 25mA
  • 2.15*2.40mm with 1.80mm lens
  • Water clear lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back order lead time 40 Days
    Colour Green
    Diameter 1.8mm
    Forward current 25mA
    Forward voltage 3.0V
    Lens colour Clear
    Lens shape Round
    Luminous intensity 3000mcd
    Mode Constant
    Moq 5
    Mounting style Through Hole
    Number of pins 2
    Operating temperature -40°C to +80°C
    Package 1.8mm
    Packaging Bulk
    Power dissipation 90mW
    Viewing angle 25°
    Wavelength 525nm
