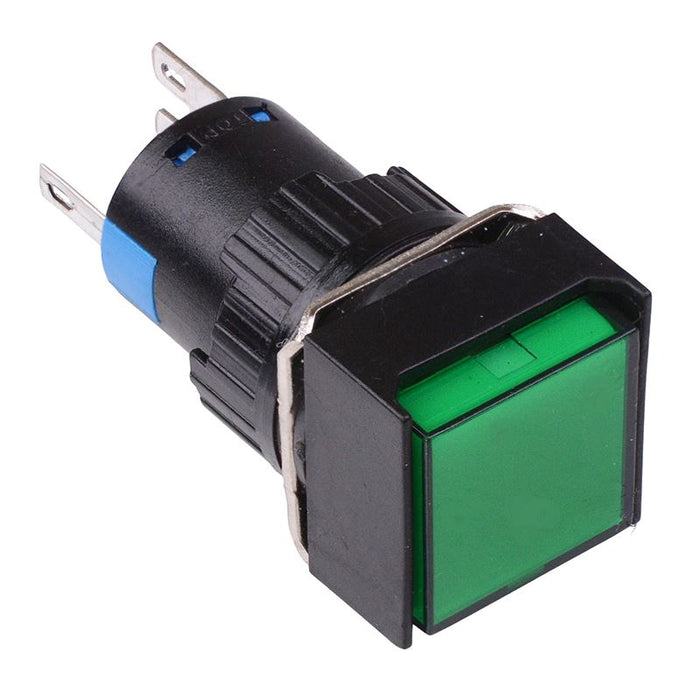

![Green Square Momentary 16mm Push Button Switch NO/NC 12V](http://pro.maplin.co.uk/cdn/shop/files/cb39aa0e-cb5d-4f01-9e36-e877142cc817_700x700.jpg?v=1687518253)
Green Square Momentary 16mm Push Button Switch NO/NC 12V
SKU 486754
MPN: 486754
Availability:
10 in stock
Original price
£3.48
-
Original price
£3.48
Original price
£3.48
Inc VAT
£3.48
-
£3.48
Current price
£3.48
Inc VAT
Green momentary push button switch featuring a square illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, automotive etc.
Green 12V illumination NO/NC contacts Solder terminals Maximum voltage: 250VAC/DC Maximum current: 5A Panel cut-out: 16mm Protection level: IP65 Button size: 15.4 x 15.4mm Dimensions: 40.5 x 18 x 18mm
Specification
Actuation | Momentary |
Back order lead time | 30 Days |
Colour | Green |
Contact configuration | SPST |
Contact material | Silver Plated |
Contact rating | 5A 250VAC/DC |
Current rating | 5A |
Electrical life | 100,000 Cycles |
Illuminated | Yes |
Illumination colour | Green |
Illumination voltage | 12VDC |
Mounting style | Panel |
Number of poles | 1 |
Number of positions | 2 |
Operating temperature | -25°C to +55°C |
Panel cut out | 16mm |
Protection level | IP65 |
Switch operation | Off-(On) |
Terminal type | Solder |
Voltage rating | 250VAC |
