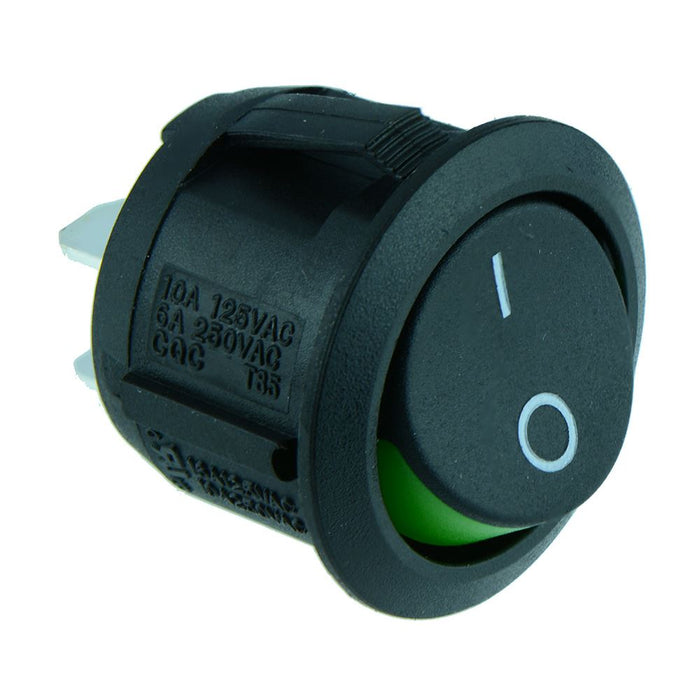

Green Round ‘Visi On’ Rocker Switch SPST R13-112A2-02

by SCI
SKU 551708

MPN: R13-112A2-02 Green

Availability:
450 in stock
Original price £0.91 - Original price £0.91
Original price
£0.91 Inc VAT
£0.91 - £0.91
Current price £0.91 Inc VAT
Circular rocker switch with SPST contacts and green bi-colour actuator suitable for a range of applications.

  • SPST contacts
  • On-Off action
  • Snap-in mounting
  • 4.8mm silver plated brass contacts
  • Panel cut-out: 20.2mm
  • 3mm maximum panel thickness
  • Maximum current: 10A
  • Maximum voltage: 250VAC
  • SCI R13 series
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Colour Green
    Contact configuration SPST
    Contact rating 10A 250VAC
    Current rating 10A
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 20.2mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
