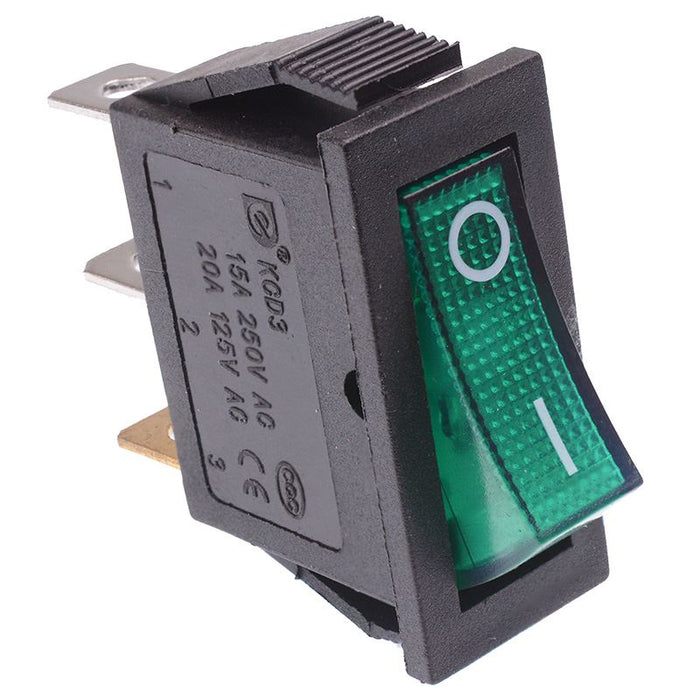

Green On-Off illuminated Rectangle Rocker Switch SPST 230V

SKU 482825

MPN: 482825

Availability:
Only 2 left!
Original price £0.71 - Original price £0.71
Original price
£0.71 Inc VAT
£0.71 - £0.71
Current price £0.71 Inc VAT
Green 230V illuminated rectangle rocker switch with SPST contacts and On-Off action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of applications.

  • SPST contacts
  • On-Off action
  • Green 230V illumination
  • 6.3mm quick connect terminals
  • Snap-in mounting
  • Panel cut-out: 28 x 10mm
  • Rating: 20A 125VAC, 15A 250VAC
  • Dimensions: 36.3 x 14 x 32mm (Height x Width x Length)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour Green
    Contact configuration SPST
    Contact rating 15A 250VAC, 20A 125VAC
    Current rating 20A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Green
    Illumination voltage 230VAC
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 28 x 10mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
