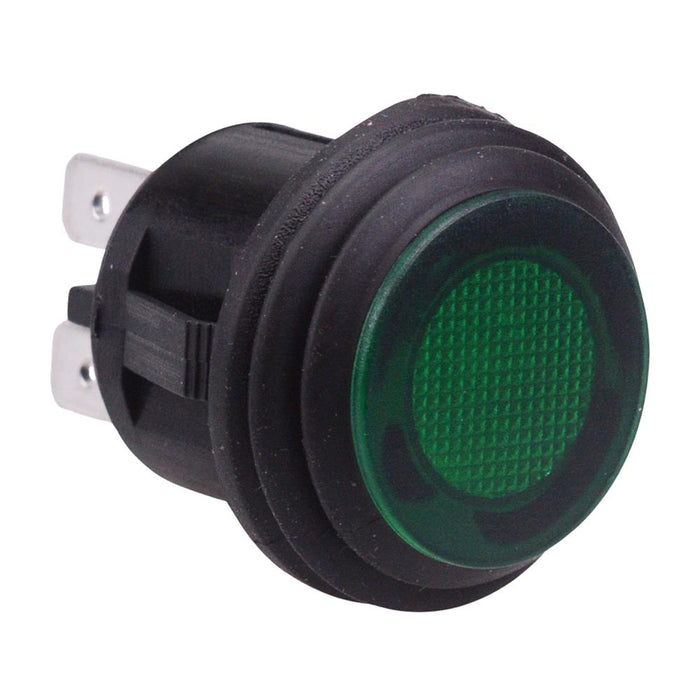

Green On-Off 12V illuminated Push Button Switch 20A

SKU 489279

MPN: ASW-29D/R Green

Availability:
195 in stock
Original price £1.52 - Original price £1.52
Original price
£1.52 Inc VAT
£1.52 - £1.52
Current price £1.52 Inc VAT
illuminated latching push button switch featuring a green LED and 4.8mm quick connect terminals suitable for 12V applications including automotive.

  • On-Off action
  • SPST contacts
  • Green 12V LED
  • Rating: 20A 12VDC
  • 4.8mm quick connect terminals
  • Panel cut-out: 20mm
  • Dimensions: 35.7 x 25mm (Height x Diameter)
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Colour Green
    Contact configuration SPST
    Contact rating 20A 12VDC
    Current rating 20A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Green
    Illumination voltage 12VDC
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 20mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 12VDC
