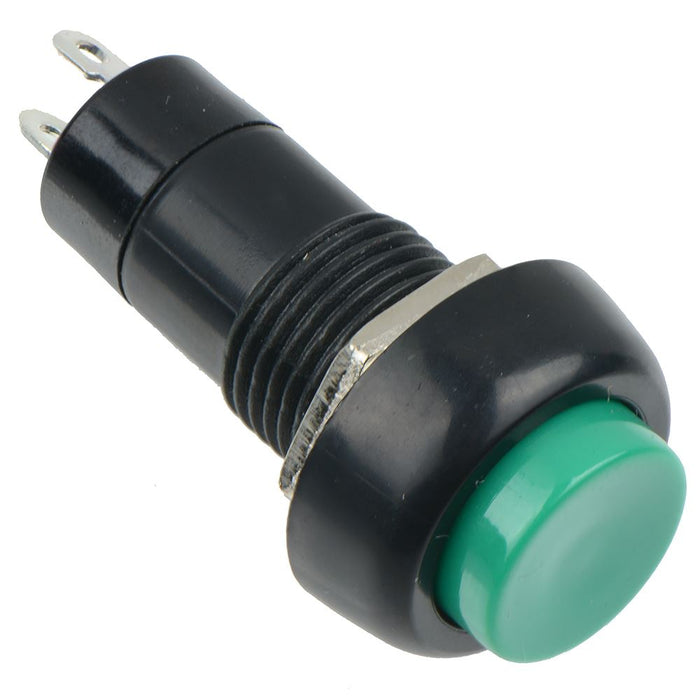

Green Off-(On) Momentary Round Push Button Switch 12mm SPST
by Canal
SKU 550407
MPN: PBS-11B green
Availability:
772 in stock
Original price
£0.58
-
Original price
£0.58
Original price
£0.58
Inc VAT
£0.58
-
£0.58
Current price
£0.58
Inc VAT
Non-latching push button switch featuring a green round actuator and SPST contacts.
Panel cut-out: 12mm Button diameter: 12mm Rating: 1A 250VAC Solder lug terminals Off-(On) momentary operation Dimensions: 38.2 x 19mm (Height x Diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Colour | Green |
| Contact configuration | SPST |
| Contact rating | 1A 250VAC |
| Current rating | 1A |
| Electrical life | 5000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating force | 300gf |
| Operating temperature | 0°C to +65°C |
| Panel cut out | 12mm |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
