Green Off-(On) Momentary 12V Illuminated Starter Button Switch SPST 50A A2-23B
by SCI
SKU 491419
MPN: A2-23B-07-G
Availability:
Only 5 left!
Original price
£6.86
-
Original price
£6.86
Original price
£6.86
£6.86
-
£6.86
Current price
£6.86

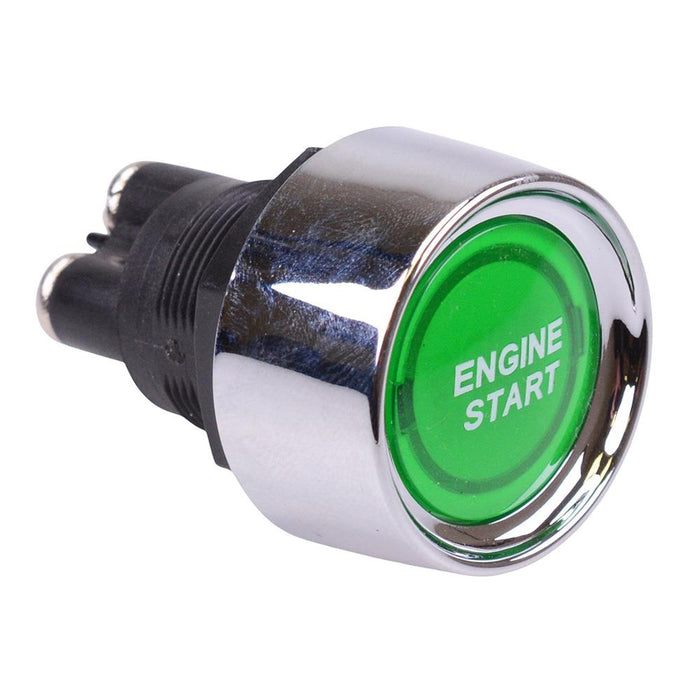

The A2-23B is an illuminated engine start push button switch featuring green 12V illumination and momentary function. The switch features a 50A current rating and requires a 22mm panel cut-out, suitable for a wide range of automotive applications.

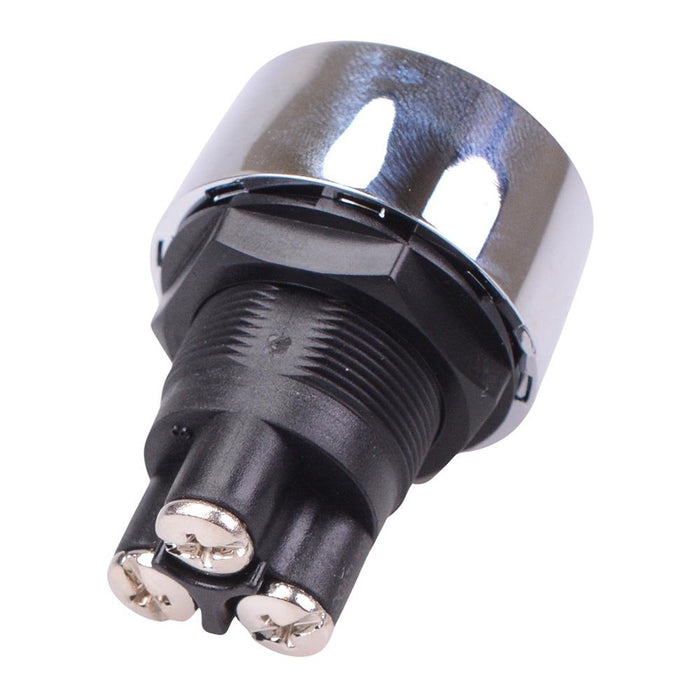

Rating: 50A 12V Momentary function Panel cut-out: 22mm Panel thickness: 9mm max Housing material: nylon Contact material: copper alloy M4 screw terminals Dimensions: 46 x 34mm (height x diameter)
Specification
| Back Order Lead Time | 150 Days |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Rating | 50A 12VDC |
| Current Rating | 50A |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Material | Chrome |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 9mm Max |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
