Green Off-On illuminated Push Pull Switch 12VDC 10A A3-7A-01
by SCI
SKU 490833
MPN: A3-7A-01 GREEN
Availability:
175 in stock
Original price
£3.55
-
Original price
£3.55
Original price
£3.55
£3.55
£3.55
-
£3.55
Current price
£3.55

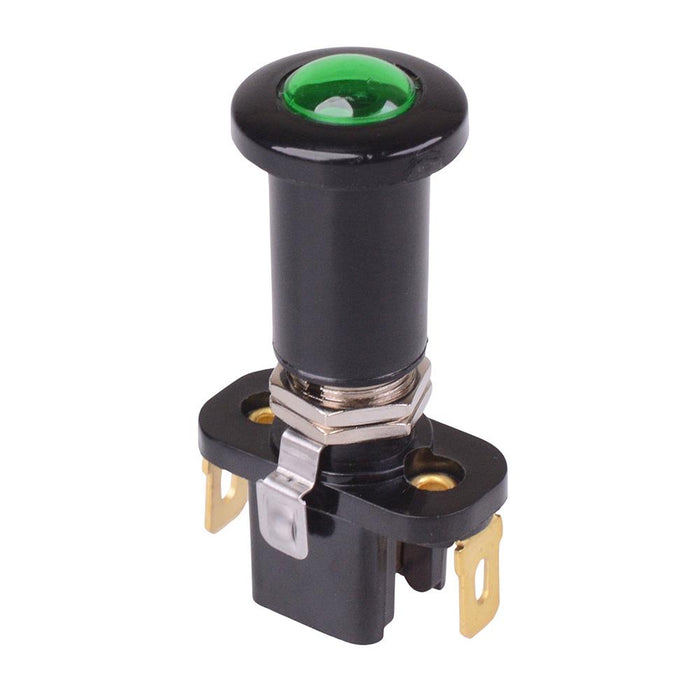

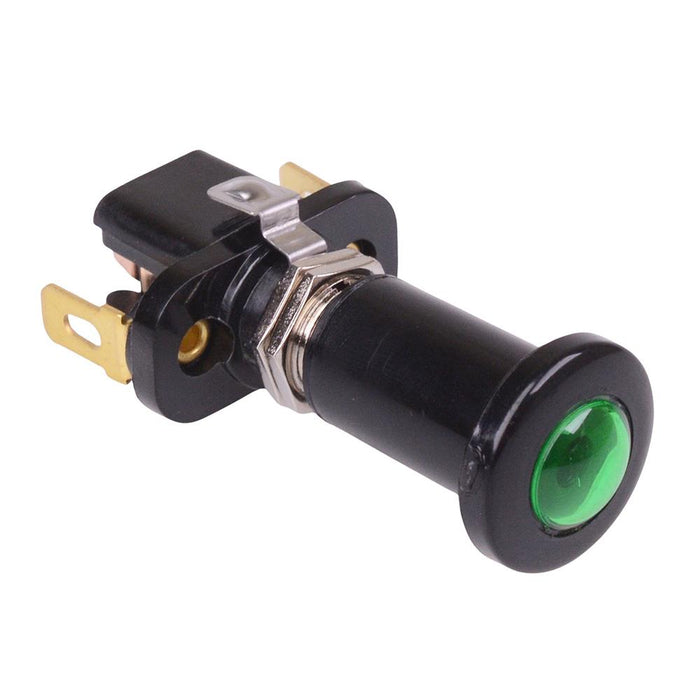

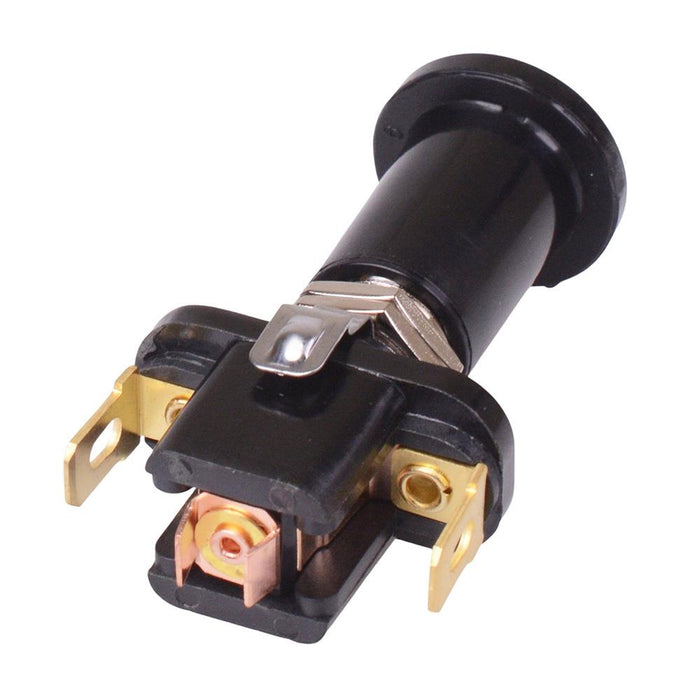

A3-7A-01 circular push-pull switch featuring a green LED and Off-On operation. The switch features quick connect terminals and requires a 12.2mm cut-out, suitable for automotive and other 12V applications.
Green LED illuminates when ON SPST contacts Off-On operation 6.3mm quick connect terminals 12.2mm panel cut-out 3mm maximum panel thickness 10A 12VDC rating Dimensions: 60.5 x 30.5 x 15.5mm (height x length x width) SCI A3-7 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 10A 12VDC |
| Current Rating | 10A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| Material | PF |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 12.2mm |
| Product Series | A3-7 |
| Switch Operation | Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
