Green LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
SKU 481622
MPN: 481622
Availability:
11 in stock
Original price
£8.53
-
Original price
£8.53
Original price
£8.53
£8.53
-
£8.53
Current price
£8.53

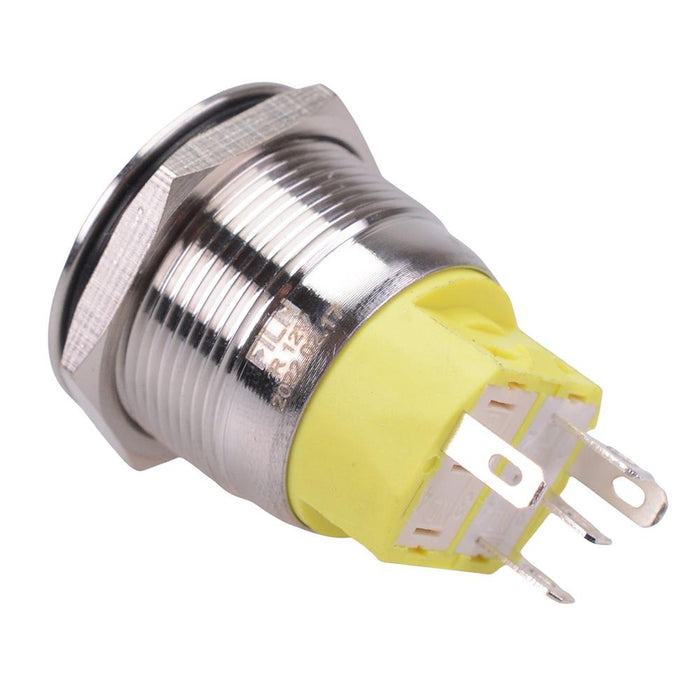

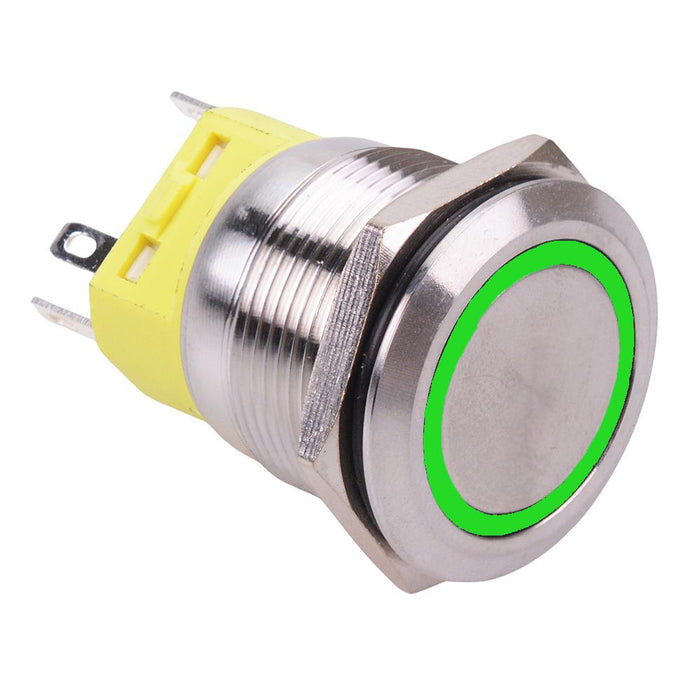

Latching vandal resistant 22mm push button switch featuring a green 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Latching action Green LED 12V illumination voltage IP67 protection rating 22mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 35.4 x 25mm (length x diameter)
Specification
Actuation | Latching |
Back Order Lead Time | 30 Days |
Colour | Green |
Contact Configuration | SPDT |
Contact Rating | 5A 250VAC |
Current Rating | 5A |
Electrical Life | 50,000 Cycles |
Illuminated | Yes |
Illumination Colour | Green |
Illumination Voltage | 12VDC |
Material | Stainless Steel |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -25°C to +85°C |
Panel Cut Out | 22mm |
Protection Level | IP67 |
Switch Operation | On-On |
Terminal Type | Solder |
Voltage Rating | 250VAC |
