Green LED 16mm Latching Vandal Push Button Switch 3A SPDT
by Langir
SKU 550465
MPN: L16FZ1SRG12V
Availability:
24 in stock
Original price
£6.59
-
Original price
£6.59
Original price
£6.59
£6.59
£6.59
-
£6.59
Current price
£6.59

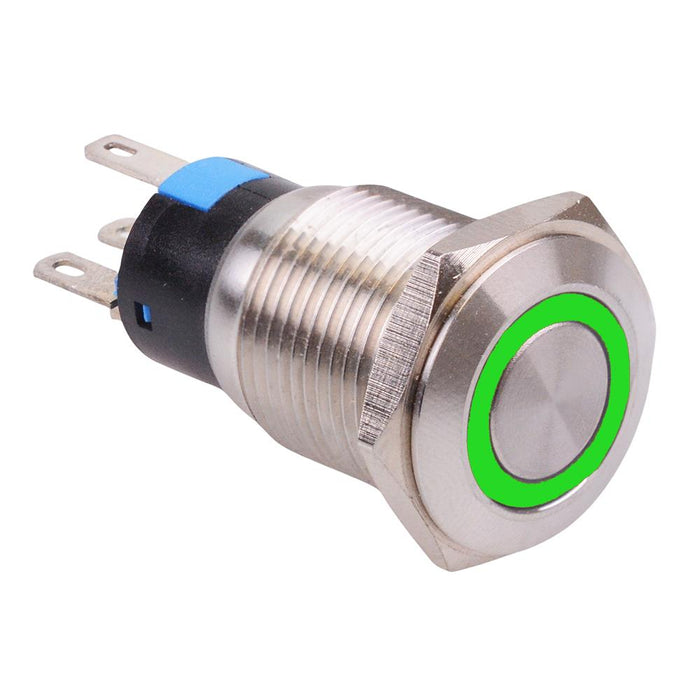

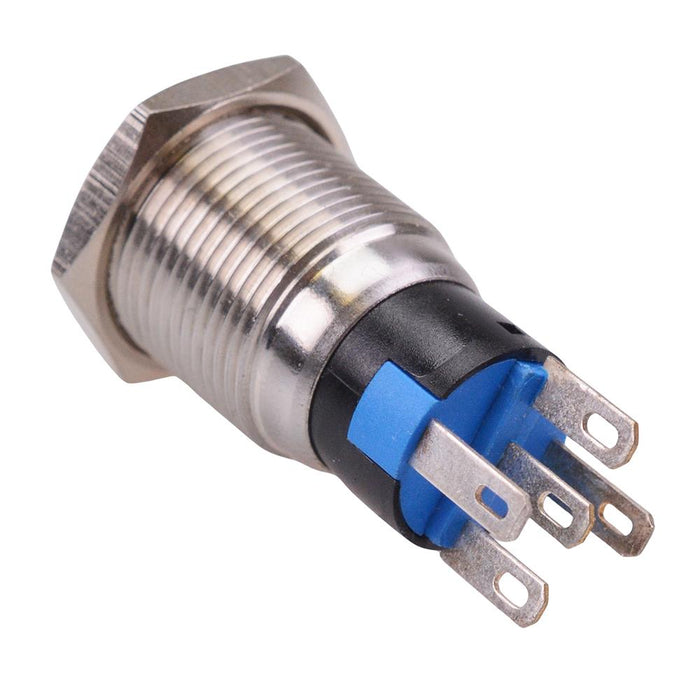

Green LED latching vandal resistant switch featuring a stainless steel, suitable for a 16mm panel cut-out. The switch features a flush actuator and is suitable for 12V applications where an attractive tamper proof switch is required.
Latching action SPDT NO/NC contacts Green LED 12V illumination Stainless steel construction Panel cut-out: 16mm Panel thickness: 10mm max Rating: 3A 250VAC 2.8x0.8mm terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Green |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000+ Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 16mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
