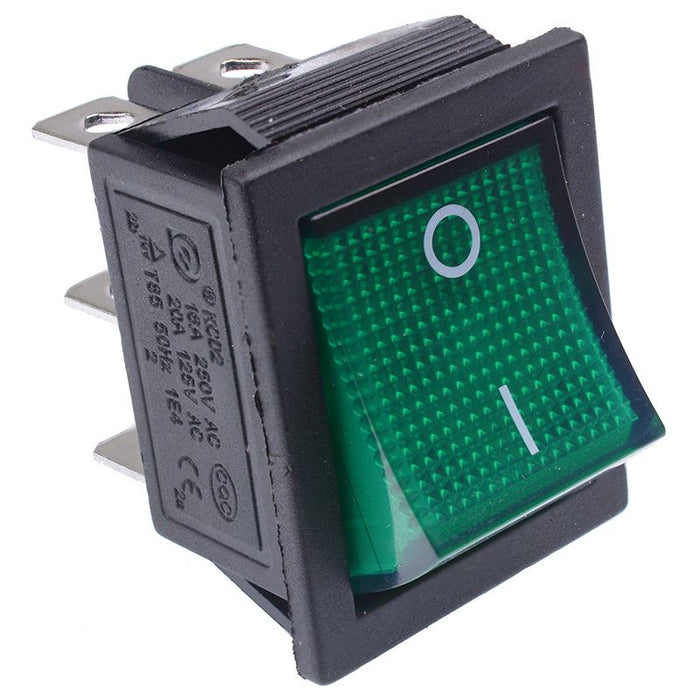

Green illuminated On-Off Rectangle Rocker Switch 220V DPDT

SKU 551800

MPN: 551800

Availability:
201 in stock
Original price £0.90 - Original price £0.90
Original price
£0.90 Inc VAT
£0.90 - £0.90
Current price £0.90 Inc VAT
illuminated rectangle rocker switch with DPDT contacts suitable for domestic, industrial and commercial applications.

  • Green illumination
  • On-on action
  • DPDT contacts
  • 220VAC illumination
  • 6*6.3mm quick connect terminals
  • 28.5 x 21.5mm panel cut-out
  • Maximum current: 15A
  • Maximum voltage: 250VAC
  • Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour Green
    Contact configuration DPDT
    Contact rating 15A 250VAC
    Current rating 15A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Green
    Illumination voltage 220VAC
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 28.5 x 21.5mm
    Switch operation On-On
    Terminal type Quick Connect
    Voltage rating 250VAC
