Green illuminated 230V Rectangle Rocker Switch DPST 16A
by Canal
SKU 491957
MPN: R210-1-C5G-BG9NWC
Availability:
20 in stock
Original price
£2.23
-
Original price
£2.23
Original price
£2.23
£2.23
-
£2.23
Current price
£2.23

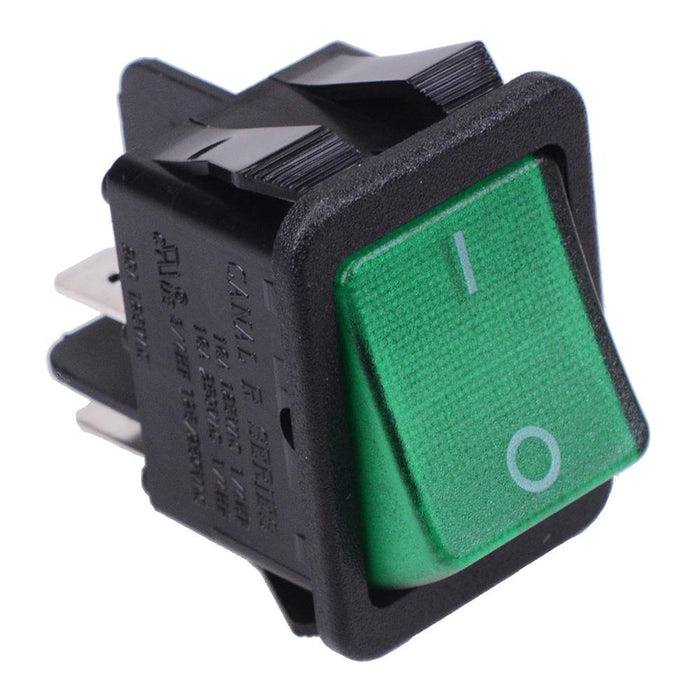

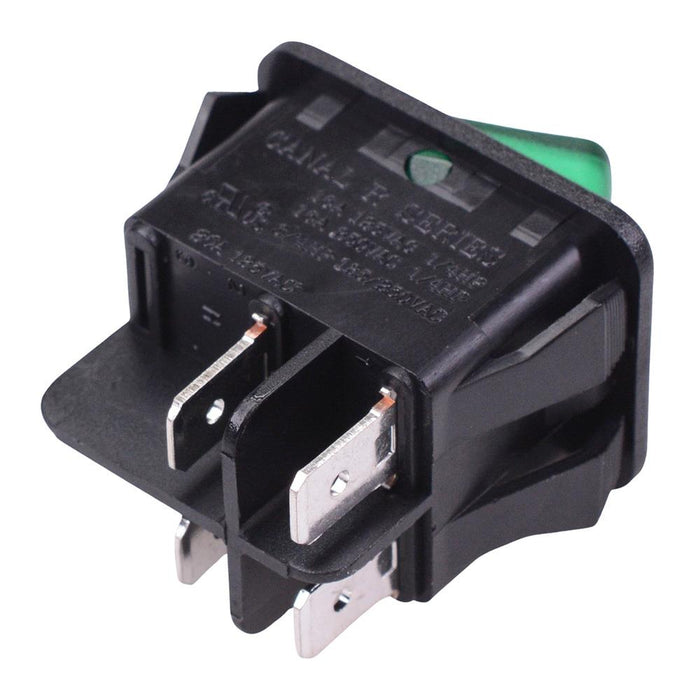

Green illuminated rectangle rocker switch featuring DPST contacts and On-Off function. The switch requires a 30.2x22mm panel cut-out and quick connect 6.3mm terminals. The switch is rated up to 16A making it suitable for a wide range of AC applications including appliances and industrial.
Green neon illumination illumination voltage: 200-250VAC Function: On-Off Contacts: DPST Panel cut-out: 30.2x22mm Rating: 16A 250VAC 6.3mm quick connect terminals Dimensions: 38.3 x 25.4 x 33.6mm (height x width x length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Contact Configuration | DPST |
| Contact Rating | 16A 250VAC |
| Current Rating | 16A |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 200-250VAC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Panel Cut Out | 30.2 x 22mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
