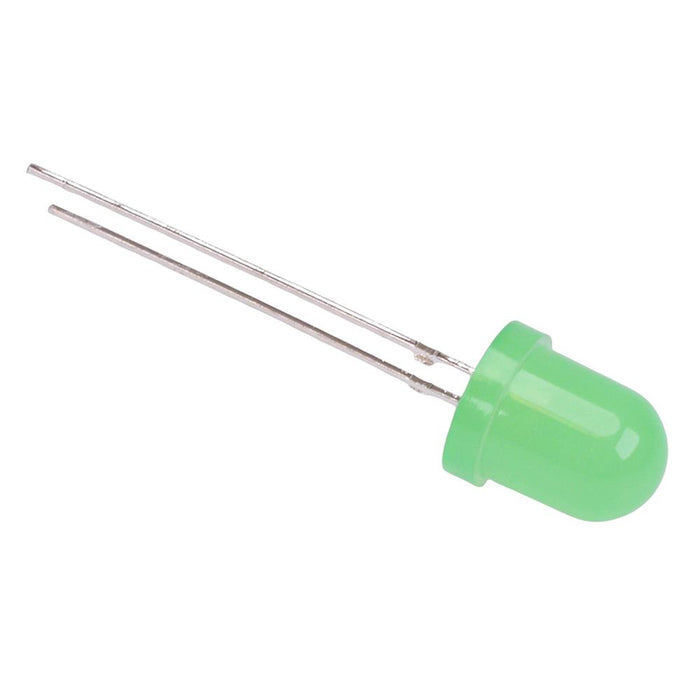

Green 8mm LED Diffused Lens 5000mcd 60°
by Luckylight
SKU 491941
MPN: 804PGD2C-G5-2B
Availability:
4626 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
£0.15
£0.15
-
£0.15
Current price
£0.15
Green 8mm LED featuring a diffused package with 2.54mm pitch leads and 5000mcd luminous intensity. Suitable for applications including indication, backlighting and illumination.
- Luminous intensity: 5000mcd
- Wavelength: 525nm
- Viewing angle: 60°
- Forward voltage: 3.0V
- Forward current: 25mA
- Suitable for through-hole mounting
- Cathode identified as the shorter lead
- 2.54mm lead pitch
- Diffused lens
- Excellent weather resistance
- Long lifespan
Specification
| Back Order Lead Time | 60 Days |
| Colour | Green |
| Diameter | 8mm |
| Forward Current | 25mA |
| Forward Voltage | 3.0V |
| Lens Colour | Green |
| Lens Shape | Round |
| Luminous Intensity | 5000mcd |
| Mode | Constant |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 80°C |
| Package | 8mm |
| Packaging | Bulk |
| Power Dissipation | 85mW |
| Viewing Angle | 60° |
| Wavelength | 525nm |
