Green 24V Panel Mount 20mm LED Panel Indicator R9-92L-02-G
by SCI
SKU 491317
MPN: R9-92L-02-G
Availability:
20 in stock
Original price
£1.37
-
Original price
£1.37
Original price
£1.37
£1.37
-
£1.37
Current price
£1.37

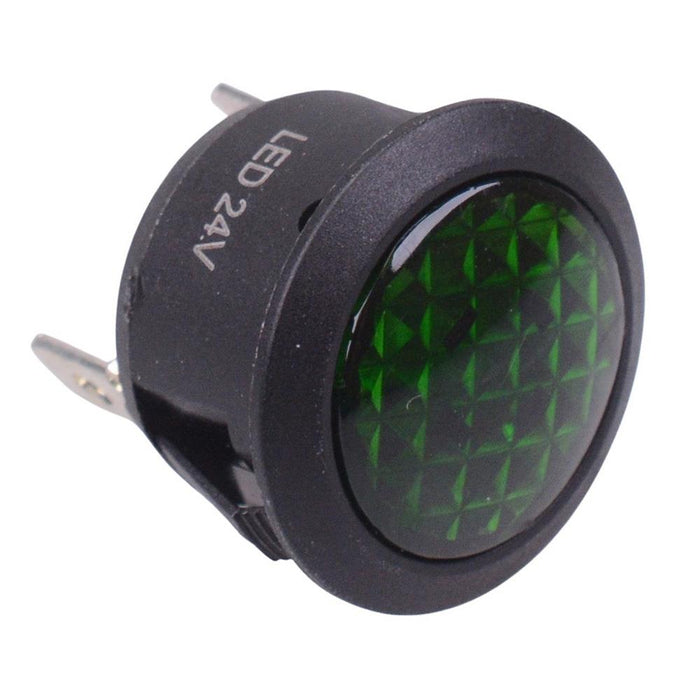

Green LED panel mount indicator featuring 24V operating voltage and 4.8mm quick connect terminals. The indicator requires a 20.2mm panel cut-out and is suitable for applications including automotive and marine.

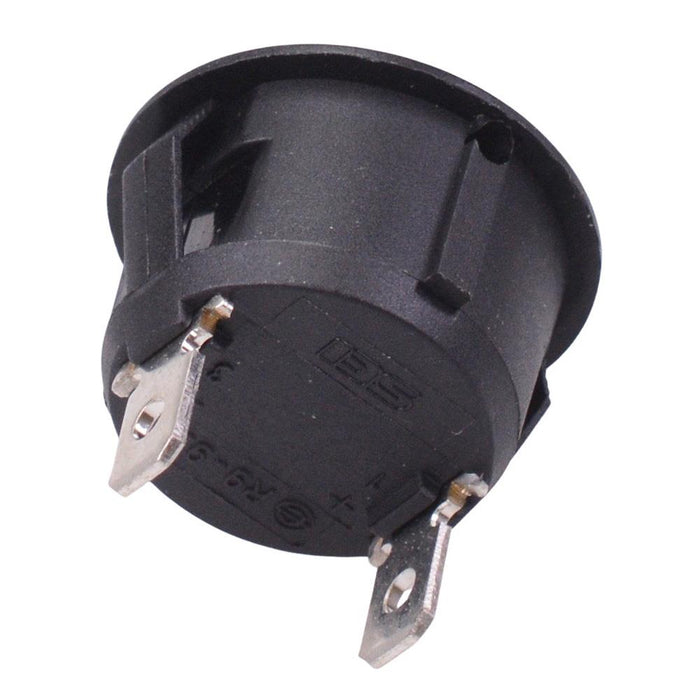

Green LED Rating: 24VDC Panel cut-out: 20.2mm Panel thickness: 2.0-3.0mm 4.8mm quick connect terminals Dimensions: 24.4 x 23.3mm (length x diameter)
Specification
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Diameter | 23.3mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 2.0-3mm |
| Protection Level | IP20 |
| Voltage Rating | 24VDC |
