Green 24V 5.2mm Panel Indicator LED Light R9-79L-11
by SCI
SKU 491312
MPN: R9-79L-11-24GREEN
Availability:
50 in stock
Original price
£1.24
-
Original price
£1.24
Original price
£1.24
£1.24
-
£1.24
Current price
£1.24

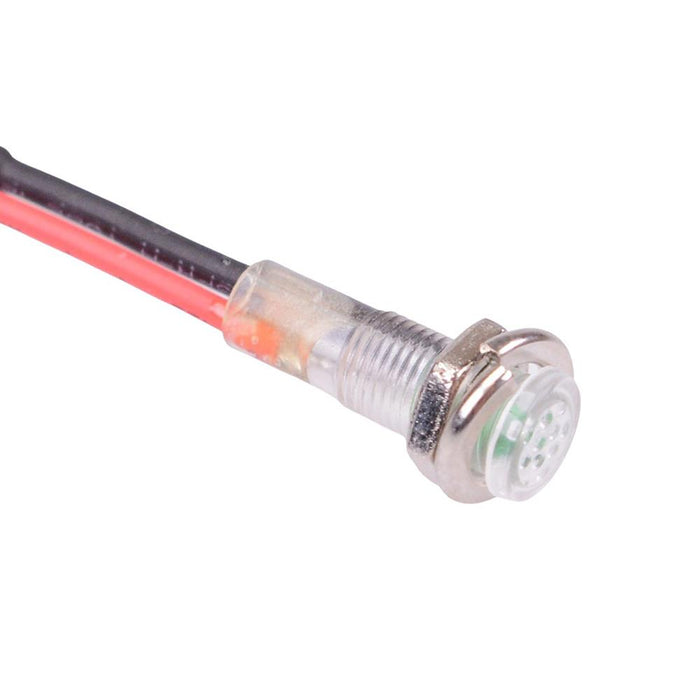

The R9-79L-24GREEN is a green LED panel indicator featuring 24VDC operating voltage and 5.2mm panel cut-out. The indicator features a flat head and 10cm 24AWG tail leads. The LED is suitable for a wide range of indication and panel applications.
Green 24V LED 5.2mm panel cut-out 0.5-5.0mm panel thickness 10cm 24AWG tail leads Dimensions: 6.0 x 15.5mm (diameter x length)
Specification
| Back Order Lead Time | 150 Days |
| Colour | Green |
| Diameter | 6.0mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -20°C to +80°C |
| Panel Cut Out | 5.2mm |
| Panel Thickness | 0.5-5mm |
| Protection Level | IP40 |
| Voltage Rating | 24VDC |
