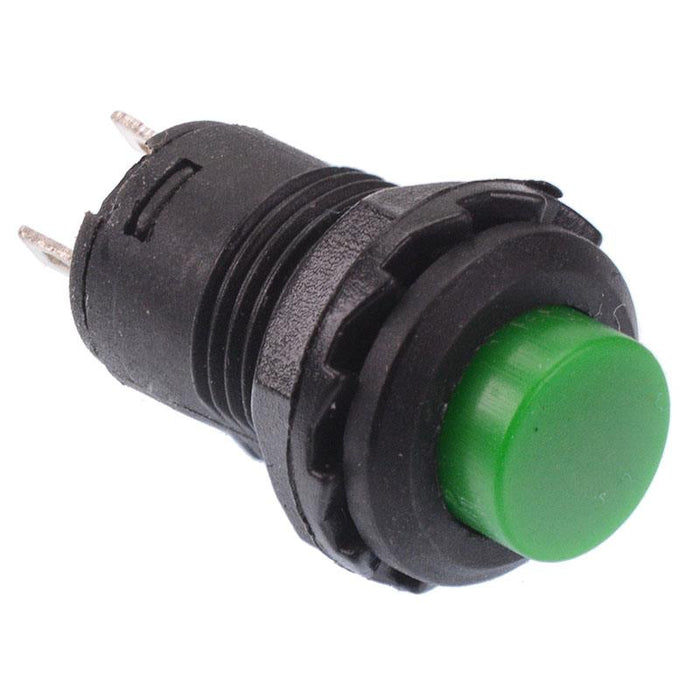

Green 12mm Latching On-Off Switch SPST
SKU 120014
MPN: 120014
Availability:
214 in stock
Original price
£0.52
-
Original price
£0.52
Original price
£0.52
£0.52
£0.52
-
£0.52
Current price
£0.52
Low cost round push button switches with a latching operation and solder lug terminals ideal for a wide range of applications.
Suitable for panel mounting Solder lug terminals Latching on-off operation SPST contacts 12mm panel cut-out Dimensions: 30.5 x 16.5mm (Height x Diameter) Maximum Panel Thickness: 5mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 1.5A 250VAC |
| Current Rating | 1.5A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +65°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
