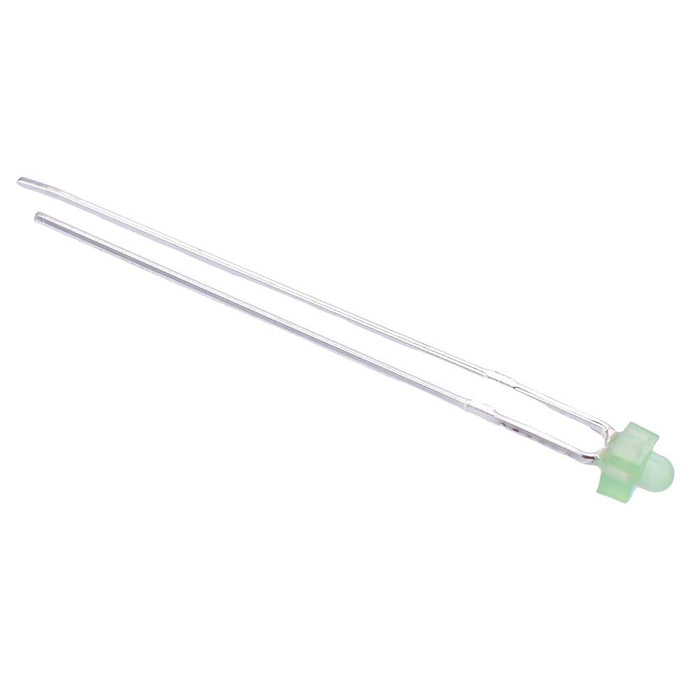

Green 1.8mm LED Diffused 2200mcd 60°
by Luckylight
SKU 490457
MPN: 204PGD2A-G5-2B
Availability:
4935 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
£0.16
-
£0.16
Current price
£0.16
Green 1.8mm LED featuring a colour diffused lens and 2200mcd luminous intensity suitable for applications including use as indicators, backlighting and general illumination.
Luminous intensity: 2200mcd Wavelength: 525nm Viewing angle: 60° Forward voltage: 3.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Green diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 40 Days |
| Colour | Green |
| Diameter | 1.8mm |
| Forward Current | 25mA |
| Forward Voltage | 3.0V |
| Lens Colour | Green |
| Lens Shape | Round |
| Luminous Intensity | 2200mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 80°C |
| Package | 1.8mm |
| Packaging | Bulk |
| Power Dissipation | 85mW |
| Viewing Angle | 60° |
| Wavelength | 525nm |
