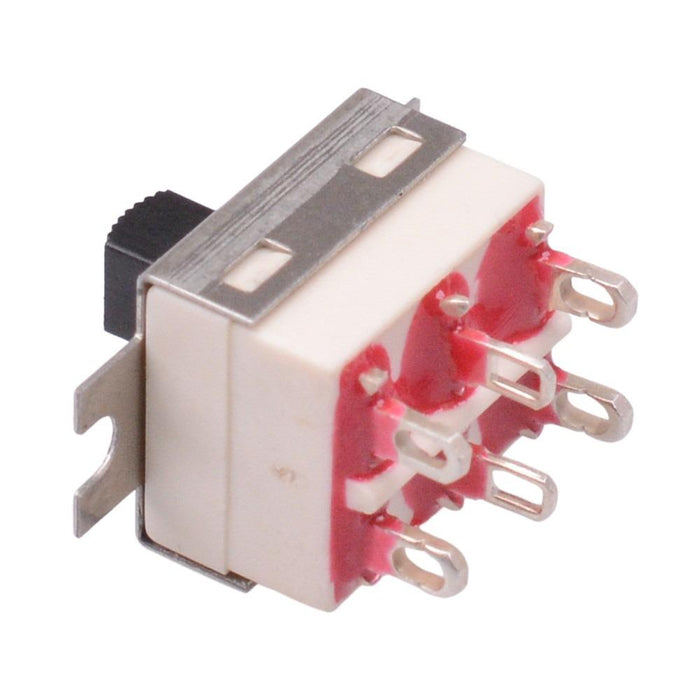

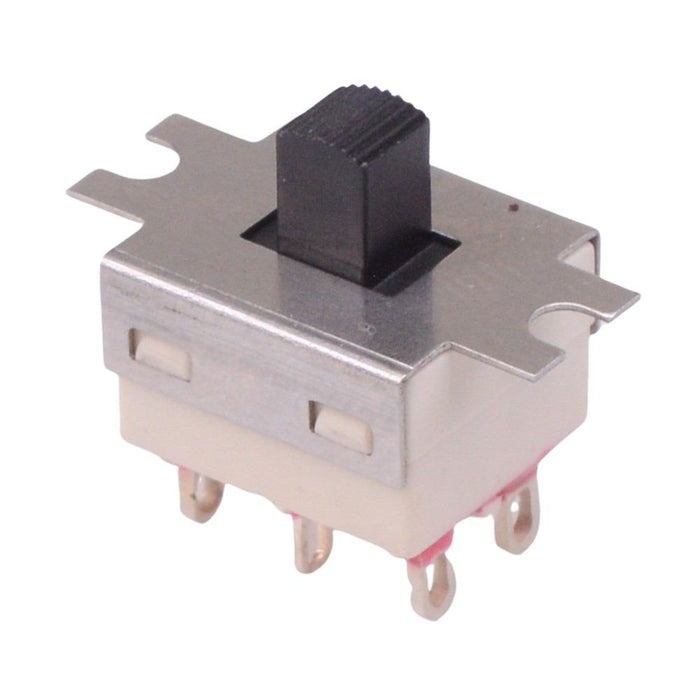

GH49S010001 On-Off-On Vertical Slide Switch DPDT 3A 30VDC
by APEM
SKU 489967
MPN: GH49S010001
Availability:
499 in stock
Original price
£4.55
-
Original price
£4.55
Original price
£4.55
Inc VAT
£4.55
-
£4.55
Current price
£4.55
Inc VAT
The GH49S010001 is a telecom grade slide switch featuring silver plated solder terminals and DPDT contacts. The switch features a 5.1mm height actuator and is suitable for professional applications.
On-Off-On function Contacts: DPDT Rating: 3A 30VDC 5.1mm height actuator Silver terminals Solder lug terminals Dimensions: 17.1 x 19.5 x 10.55mm (height x length x width) Mounting hole pitch: 17.53mm
Specification
| Actuation | Latching |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 3A 30VDC |
| Current rating | 3A |
| Electrical life | 20,000 Cycles |
| Material | PES |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -30°C to +85°C |
| Product series | GH |
| Switch operation | On-Off-On |
| Terminal type | Solder |
| Voltage rating | 30VDC |
