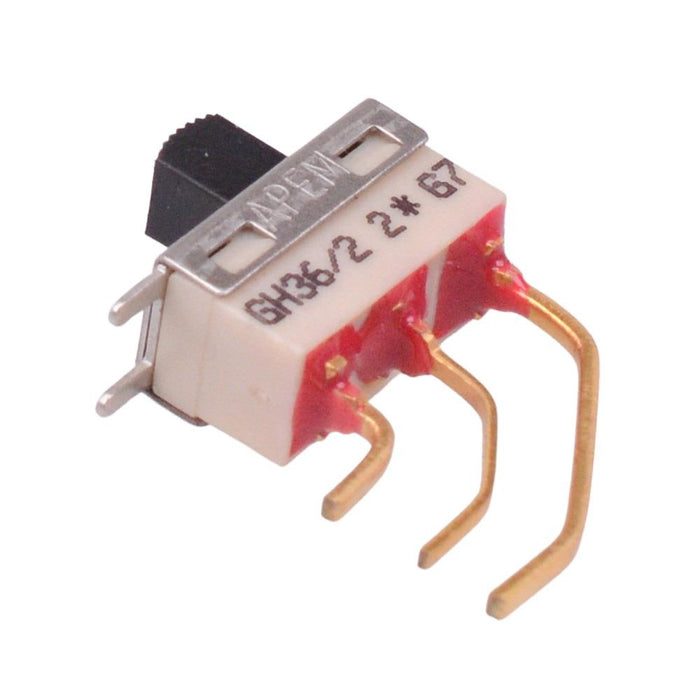

GH36WW20001 Right Angle Vertical On-On Slide Switch SPDT 3A 30VDC
by APEM
SKU 489966
MPN: GH36WW20001
Availability:
50 in stock
Original price
£5.18
-
Original price
£5.18
Original price
£5.18
£5.18
-
£5.18
Current price
£5.18
The GH36WW20001 is a telecom grade slide switch featuring silver plated PCB terminals and SPDT contacts. The switch features a 5.1mm height actuator and is suitable for professional applications.
On-On function Contacts: SPDT Rating: 3A 30VDC 5.1mm height actuator Gold plated silver terminals PCB terminals Terminal pitch: 3.81mm Dimensions: 12.7 x 6.65mm (length x width)
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 30VDC |
| Current Rating | 3A |
| Electrical Life | 40,000 Cycles |
| Material | PES |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Pitch | 3.81mm |
| Product Series | GH |
| Switch Operation | On-On |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
