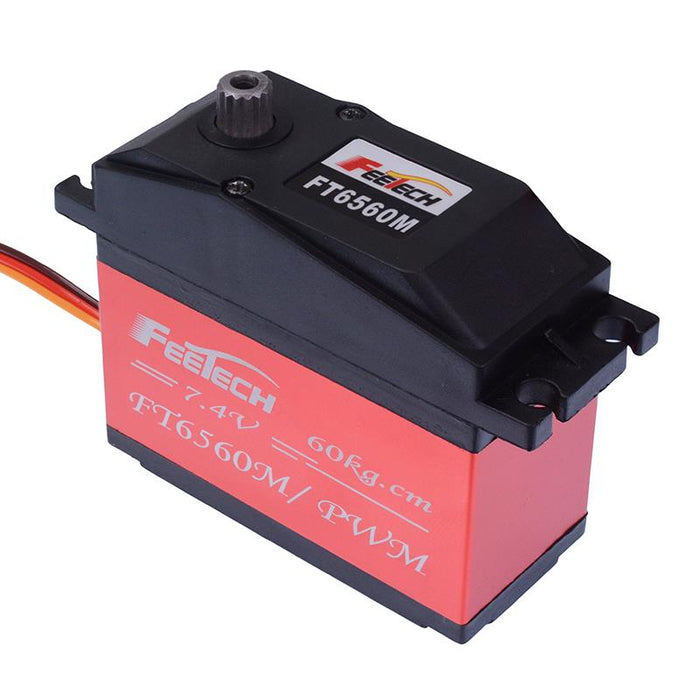

FT6560M High Torque 62Kg Servo FeeTech

by Feetech
SKU 485581

MPN: FT6560M

Only 3 left!
Original price £56.18 - Original price £56.18
Original price
£56.18 Inc VAT
£56.18 - £56.18
Current price £56.18 Inc VAT
The FT6560M is a digital high torque servo motor suitable for use with 6V signals. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.

  • Type: digital
  • Speed: 0.15(6V), 0.13(7.4V) sec/60°
  • Torque: 48(6V), 62(7.4V) kg/cm
  • Gears: metal
  • Operating voltage: 4-8.4V
  • Rotation: 120°
  • Cable length: 250mm
  • Weight: 200g
  • Dimensions: 65.8 x 30 x 57.4mm (LxWxH)
  • Specification
    Back order lead time 30 Days
    Cable length 250mm
    Gear spline 15T
    Gear type Metal
    Height 57.4mm
    Idle current 5mA at 6V
    Input voltage 4-8.4V
    Length 65.8mm
    No load speed 0.15sec/60degree at 6V
    Operating temperature -15°C to +70°C
    Peak stall torque at 6V
    Running current 190mA at 6V
    Stall current 2.4A at 6V
    Total rotation 120°
    Type Digital
    Weight 200g
    Width 30mm
