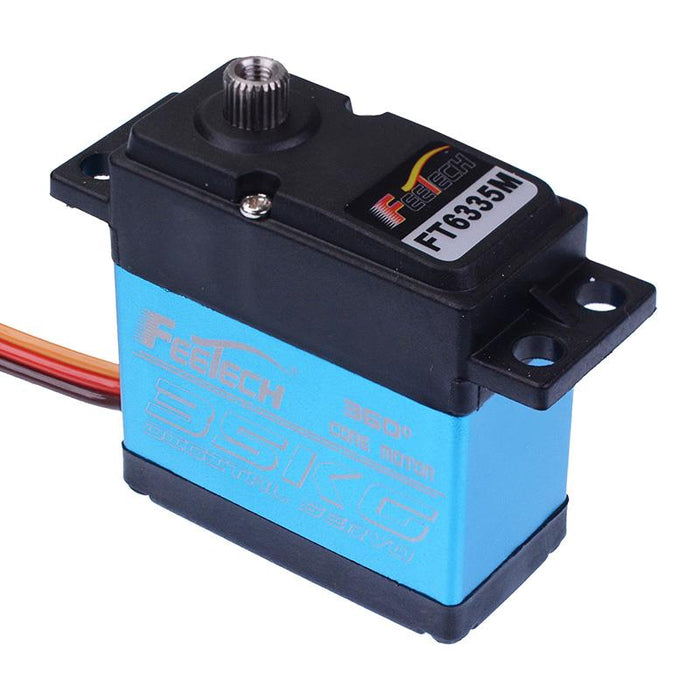

FT6335M High Torque 67g 35.5Kg/cm Digital 360° Continuous Rotation Servo FeeTech

by Feetech
SKU 485587

MPN: FT6335M

Availability:
9 in stock
Original price £28.22 - Original price £28.22
Original price
£28.22 Inc VAT
£28.22 - £28.22
Current price £28.22 Inc VAT
The FT6335M is a digital high torque servo motor with an operating voltage range of 4V to 8.4V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.

  • Type: digital
  • Speed: 0.238(6V), 0.192(7.4V) sec/60°
  • Torque: 28.8(6V), 35.5(7.4V) kg/cm
  • Rotation: 360°
  • Gears: metal
  • Operating voltage: 4-8.4V
  • Cable length: 30cm
  • Weight: 67g
  • Dimensions: 40 x 20 x 47.4mm (LxWxH)
  • Includes adjustable servo arm, accessories and bag
  • Specification
    Back order lead time 30 Days
    Cable length 300mm
    Gear spline 25T
    Gear type Metal
    Height 43mm
    Idle current 6mA at 6V
    Input voltage 4-8.4V
    Length 55mm
    No load speed 0.238sec/60degree at 6V
    Operating temperature -20°C to +60°C
    Peak stall torque 28.8kg.cm at 6V
    Running current 150mA at 6V
    Stall current 3.2A at 6V
    Total rotation 360°
    Type Digital
    Weight 67g
    Width 20mm
    Request a quote
