FT5325M High Torque 67g 25Kg/cm Digital 180° Rotation Servo FeeTech

by Feetech
SKU 485589

MPN: FT5325M-C012

Availability:
Out of stock
Sold out
Original price £16.03 - Original price £16.03
Original price
£16.03 Inc VAT
£16.03 - £16.03
Current price £16.03 Inc VAT

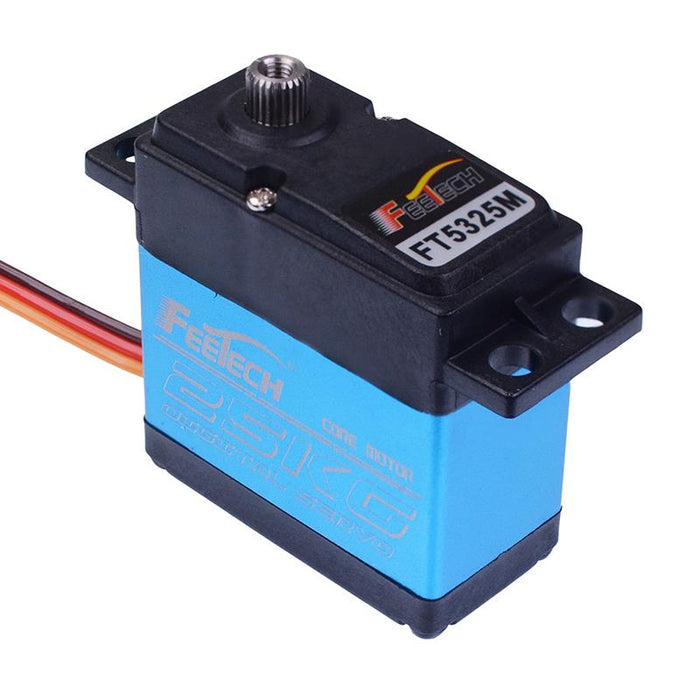

The FT5325M is a digital high torque servo motor with an operating voltage range of 4V to 8.4V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.

  • Type: digital
  • Speed: 0.185(6V), 0.151(7.4V) sec/60°
  • Torque: 20.5(6V), 25(7.4V) kg/cm
  • Rotation: 180°
  • Gears: metal
  • Operating voltage: 4-8.4V
  • Cable length: 30cm
  • Weight: 67g
  • Dimensions: 40 x 20 x 47.4mm (LxWxH)
  • Includes adjustable servo arm, accessories and bag
  • Specification
    Back order lead time 30 Days
    Cable length 300mm
    Gear spline 25T
    Gear type Metal
    Height 43mm
    Idle current 6mA at 6V
    Input voltage 4-8.4V
    Length 55mm
    No load speed 0.185sec/60degree at 6V
    Operating temperature -20°C to +60°C
    Peak stall torque 20.5kg.cm at 6V
    Running current 100mA at 6V
    Stall current 3A at 6V
    Total rotation 180°
    Type Digital
    Weight 67g
    Width 20mm
