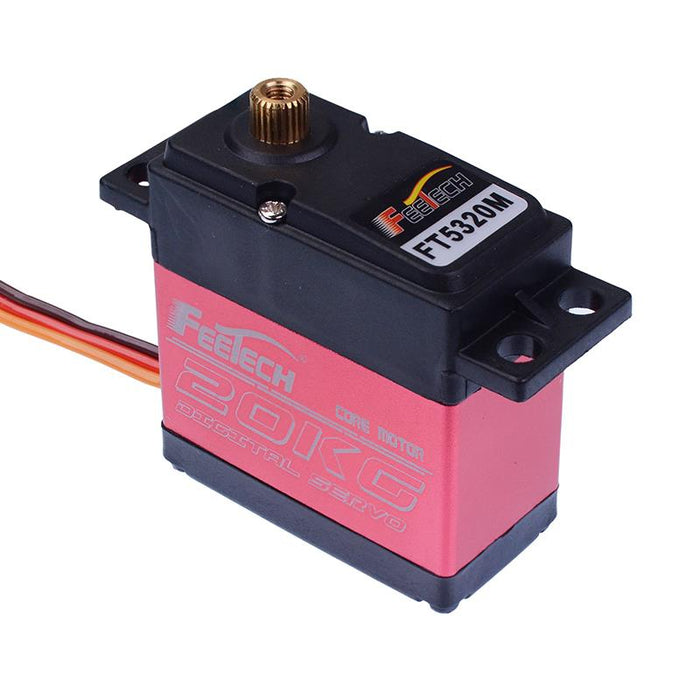

FT5320M High Torque 67g 20Kg/cm Digital 180° Rotation Servo FeeTech
by Feetech
SKU 485588
MPN: FT5320M-C004
Availability:
10 in stock
Original price
£16.57
-
Original price
£16.57
Original price
£16.57
£16.57
-
£16.57
Current price
£16.57
The FT5320M is a digital high torque servo motor with an operating voltage range of 4V to 8.4V. The servo features metal gears providing a long lifespan and high torque, suitable for robotic and general purpose applications.
Type: digital Speed: 0.185(6V), 0.151(7.4V) sec/60° Torque: 16.5(6V), 20(7.4V) kg/cm Rotation: 180° Gears: metal Operating voltage: 4-8.4V Cable length: 30cm Weight: 67g Dimensions: 40 x 20 x 47.4mm (LxWxH) Includes adjustable servo arm, accessories and bag
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 300mm |
| Gear Spline | 25T |
| Gear Type | Metal |
| Height | 43mm |
| Idle Current | 6mA at 6V |
| Input Voltage | 4-8.4V |
| Length | 55mm |
| No Load Speed | 0.185sec/60degree at 6V |
| Operating Temperature | -20°C to +60°C |
| Peak Stall Torque | 16.5kg.cm at 6V |
| Running Current | 100mA at 6V |
| Stall Current | 2.3A at 6V |
| Total Rotation | 180° |
| Type | Digital |
| Weight | 67g |
| Width | 20mm |
