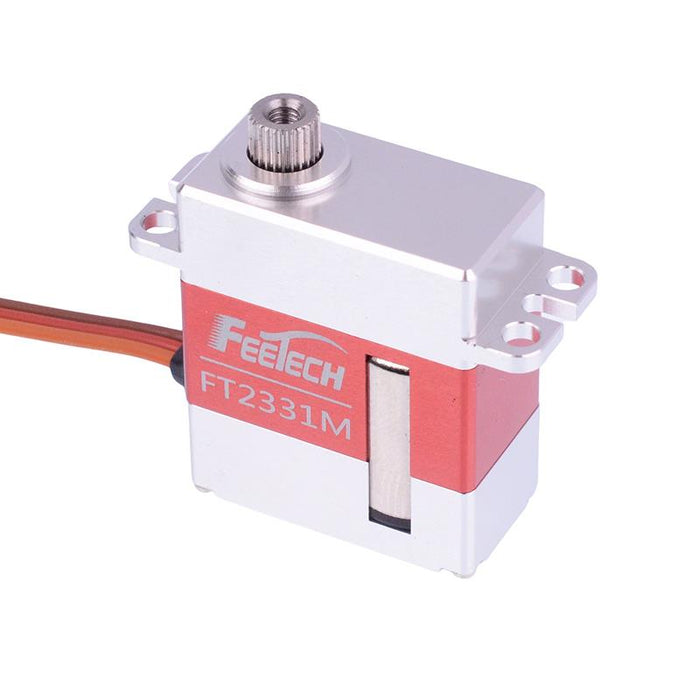

FT2331M Small 21g Digital Servo FeeTech
by Feetech
SKU 485577
MPN: FT2331M
Availability:
20 in stock
Original price
£33.12
-
Original price
£33.12
Original price
£33.12
Inc VAT
£33.12
-
£33.12
Current price
£33.12
Inc VAT
The FT2331M is a digital mini servo motor with an operating voltage between 3V to 8.4V, suitable for robotic and general purpose applications.
Type: digital Speed: 0.11(4.8V), 0.09(6V) sec/60° Torque: 3.5(4.8V), 4.5(6V) kg/cm Gears: metal Rotation: 240° Operating voltage: 3-8.4V Cable length: 25cm Weight: 21g Dimensions: 23.2x12.1x26.5mm (LxWxH)
Specification
| Back order lead time | 30 Days |
| Cable length | 250mm |
| Gear spline | 25T |
| Gear type | Metal |
| Height | 27.5mm |
| Idle current | 6mA at 4.8V |
| Input voltage | 3-8.4V |
| Length | 32mm |
| No load speed | 0.11sec/60degree at 4.8V |
| Operating temperature | -20°C to +60°C |
| Peak stall torque | 3.5kg.cm at 4.8V |
| Running current | 130mA at 4.8V |
| Stall current | 1A at 4.8V |
| Total rotation | 240° |
| Type | Digital |
| Weight | 21g |
| Width | 12mm |
