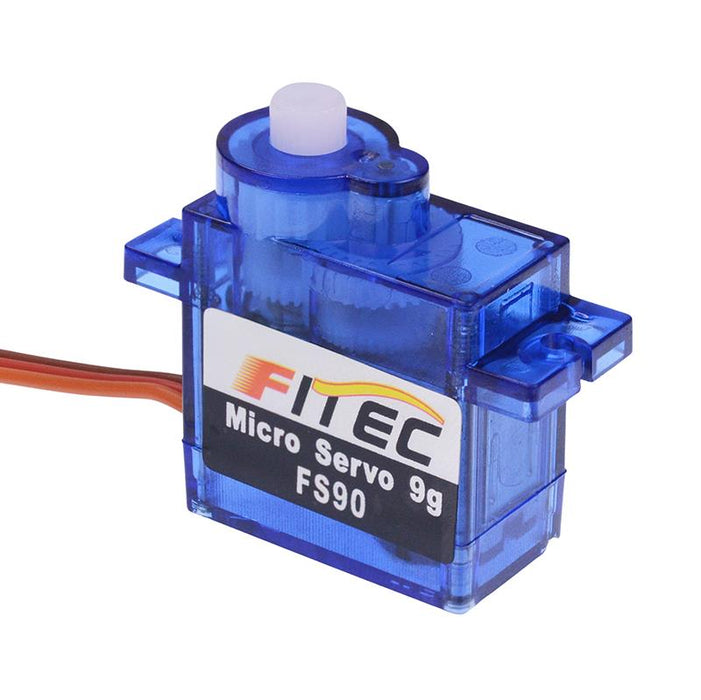

FS90 Mini 9g Analog Servo FeeTech
by Feetech
SKU 485561
MPN: FS90
Availability:
Out of stock
Sold out
Original price
£4.12
-
Original price
£4.12
Original price
£4.12
£4.12
-
£4.12
Current price
£4.12
The FS90 is an analog mini servo motor with an operating voltage between 4.8V to 6V, suitable for robotic and general purpose applications.
Type: analog Speed: 0.12(4.8V), 0.10(6V) sec/60° Torque: 1.3(4.8V), 1.5(6V) kg/cm Rotation: 180° Operating voltage: 4.8-6V Gears: plastic Cable length: 250mm Weight: 9g Dimensions: 22.5 x 12.1 x 29.7mm (LxWxH)
Specification
| Back Order Lead Time | 30 Days |
| Cable Length | 250mm |
| Gear Spline | 21T |
| Gear Type | Plastic |
| Height | 22.4mm |
| Idle Current | 5mA at 4.8V |
| Input Voltage | 4.8-6V |
| Length | 22.5mm |
| No Load Speed | 0.12sec/60degree at 4.8V |
| Operating Temperature | -15°C to +70°C |
| Peak Stall Torque | 1.3kg.cm at 4.8V |
| Running Current | 100mA at 4.8V |
| Stall Current | 700mA at 4.8V |
| Total Rotation | 180° |
| Type | Analog |
| Weight | 9g |
| Width | 12.1mm |
