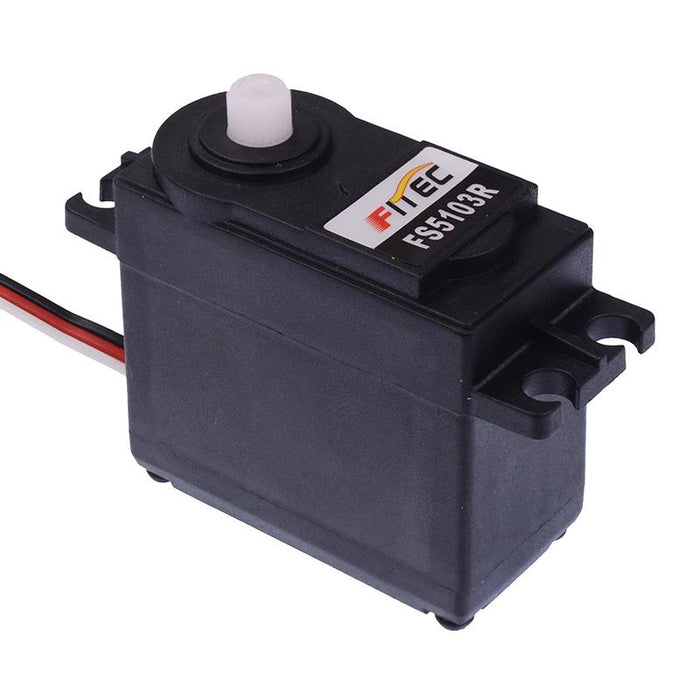

FS5103R Standard 41.5g Analog 360° Continuous Rotation Servo FeeTech
by Feetech
SKU 485572
MPN: FS5103R
Availability:
7 in stock
Original price
£7.73
-
Original price
£7.73
Original price
£7.73
Inc VAT
£7.73
-
£7.73
Current price
£7.73
Inc VAT
The FS5103R is an analog standard servo motor with an operating voltage range of 4V to 8.4V, suitable for robotic and general purpose applications.
Type: analog Speed: 0.154(4.8V), 0.125(6V) sec/60° Torque: 2.6(4.8V), 3.2(6V) kg/cm Rotation: 360° Gears: plastic Operating voltage: 4-8.4V Cable length: 30cm Weight: 41.5g Dimensions: 40.1 x 20.1x 42.8mm (LxWxH)
Specification
| Back order lead time | 30 Days |
| Cable length | 300mm |
| Gear spline | 25T |
| Gear type | Plastic |
| Height | 37.2mm |
| Idle current | 6mA at 4.8V |
| Input voltage | 4-8.4V |
| Length | 40.15mm |
| No load speed | 0.154sec/60degree at 4.8V |
| Operating temperature | -20°C to +60°C |
| Peak stall torque | 2.6kg.cm at 4.8V |
| Running current | 130mA at 4.8V |
| Stall current | 900mA at 4.8V |
| Total rotation | 360° |
| Type | Analog |
| Weight | 41.5g |
| Width | 20.15mm |
