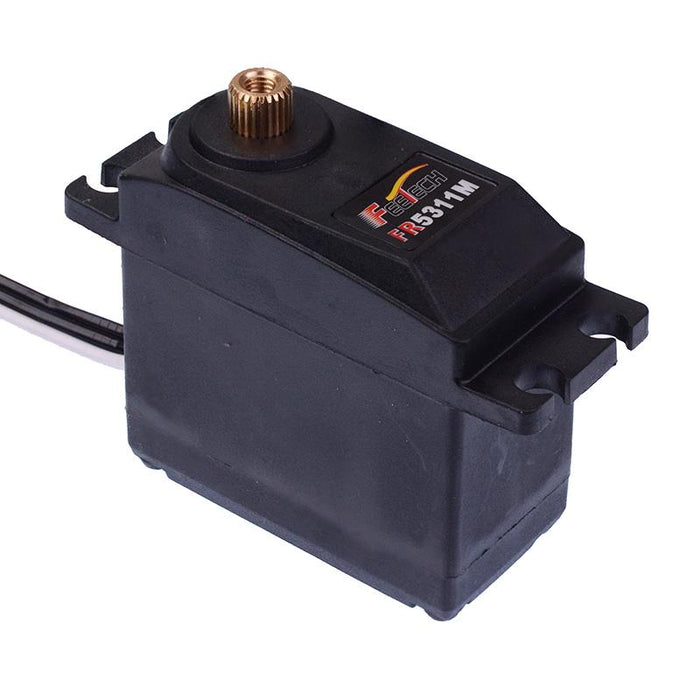

FR5311M Standard 60.5g Digital Servo FeeTech
by Feetech
SKU 485578
MPN: FR5311M
Availability:
Only 4 left!
Original price
£16.07
-
Original price
£16.07
Original price
£16.07
Inc VAT
£16.07
-
£16.07
Current price
£16.07
Inc VAT
The FR5311M is a digital standard servo motor featuring two working modes (standard and continous rotation) with an operating voltage between 4V to 8.4V, suitable for robotic and general purpose applications.
Type: digital Speed: 0.25(4.8V), 0.2(7.4V) sec/60° Torque: 13(4.8V), 15.5(7.4V) kg/cm Rotation: 300° Operating voltage: 4-8.4V Cable length: 30cm Weight: 60.5g Dimensions: 40.1 x 20.1 x 44.2mm (LxWxH) Standard rotation as default, continuous rotation requires a servo programmer
Specification
| Back order lead time | 30 Days |
| Cable length | 300mm |
| Gear spline | 25T |
| Gear type | Metal |
| Height | 38.8mm |
| Idle current | 6mA at 4.8V |
| Input voltage | 4-8.4V |
| Length | 40.1mm |
| No load speed | 0.25sec/60degree at 4.8V |
| Operating temperature | -20°C to +60°C |
| Peak stall torque | 13kg.cm at 4.8V |
| Running current | 130mA at 4.8V |
| Stall current | 1.5A at 4.8V |
| Total rotation | 300° |
| Type | Digital |
| Weight | 60.5g |
| Width | 20.1mm |
