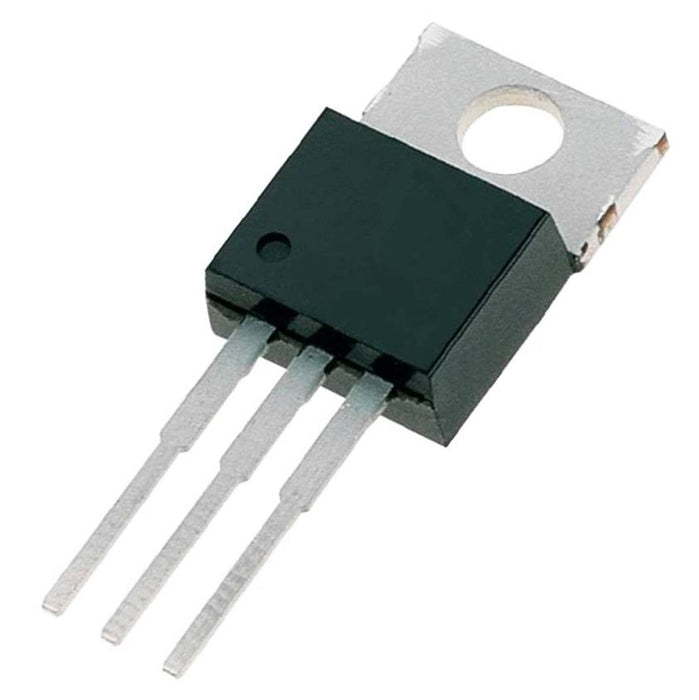

FQP2N60C MOSFET N Channel Transistor 2A 600V TO-220

SKU 480692

MPN: FQP2N60C

Availability:
Only 5 left!
Original price £1.88 - Original price £1.88
Original price
£1.88 Inc VAT
£1.88 - £1.88
Current price £1.88 Inc VAT
The FQP2N60C is an N-channel enhancement mode power MOSFET produced using Fairchild Semicondcutor's proprietary planar strip and DMOS technology. This technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, active power factor correction and electronic lamp ballasts.

  • TO-220 package
  • Drain source voltage: 600V
  • Drain current: 2A
  • Power dissipation: 54W
  • Specification
    Back order lead time 5 Days
    Continuous drain current 2A
    Drain source on resistance 4.7Ω
    Drain source voltage 600V
    Input capacitance 180pF
    Maximum operating temperature 150°C
    Mounting type Through Hole
    Package TO220
    Power dissipation 54W
    Type N-Channel
