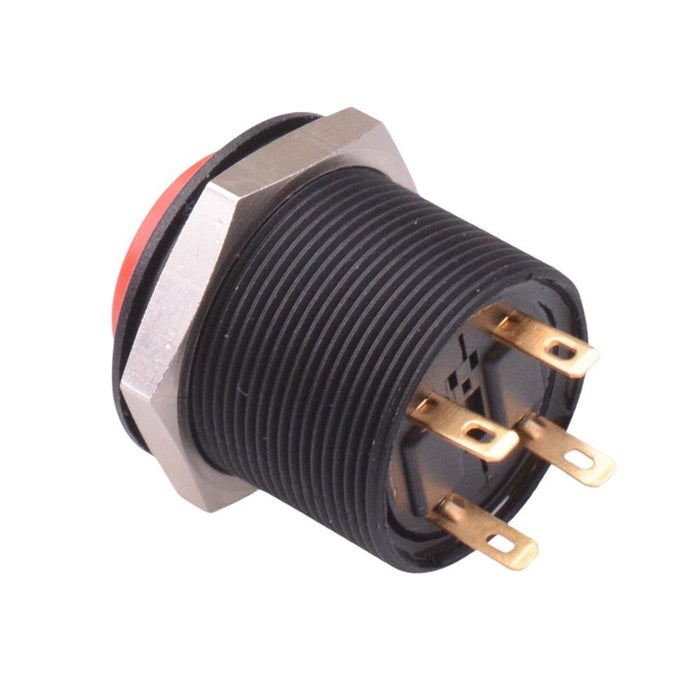

FPAR3B1462X0X APEM Red Off-(On) Momentary Push Button Switch Round Actuator 24.2mm DPST
by APEM
SKU 489962
MPN: FPAR3B1462X0X
Availability:
179 in stock
Original price
£16.70
-
Original price
£16.70
Original price
£16.70
Inc VAT
£16.70
-
£16.70
Current price
£16.70
Inc VAT
The FPAR3B1462X0X is a red snap-in 24mm push button switch with Off-(On) momentary function and solder lug terminals. The switch features a 0.2A 12VDC rating and is suitable for applications including autotmotive and fireworks.
Off-(On) momentary function DPST function Snap-in mounting Solder lug terminals Panel cut-out: 24.2mm Panel thickness: 1-18mm Rating: 0.2A 12VDC
Specification
| Actuation | Momentary |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 0.2A 12VDC |
| Current rating | 0.2A |
| Electrical life | 300,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +75°C |
| Panel cut out | 24.2mm |
| Panel thickness | 1-18mm |
| Product series | FP |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 12VDC |
