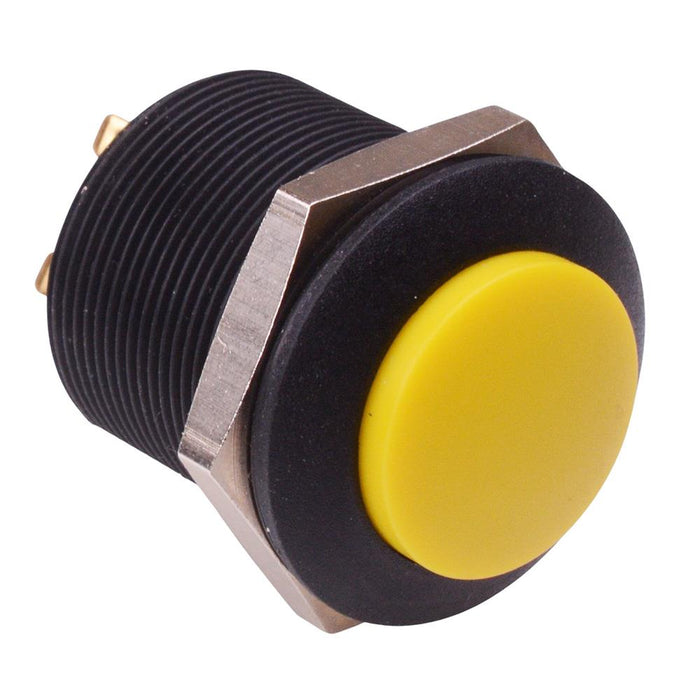

FPAR3B1452X0X APEM Yellow Off-(On) Momentary 24mm Push Button Switch DPST
by APEM
SKU 487663
MPN: FPAR3B1452X0X
Availability:
16 in stock
Original price
£11.89
-
Original price
£11.89
Original price
£11.89
Inc VAT
£11.89
-
£11.89
Current price
£11.89
Inc VAT
The FPAR3B1452X0X is a yellow snap-in 24mm latching push button switch with Off-(On) momentary function and solder lug terminals. The switch features a 4A 12VDC rating and is suitable for applications including autotmotive and fireworks.
Off-(On) momentary function DPST function Snap-in mounting Solder lug terminals Panel cut-out: 24mm Panel thickness: 1-18mm Rating: 4A 12VDC
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Yellow |
| Contact configuration | DPST |
| Contact material | Silver |
| Contact rating | 4A 12VDC |
| Current rating | 4A |
| Electrical life | 400,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating force | 8N |
| Operating temperature | -40°C to +75°C |
| Panel cut out | 24mm |
| Panel thickness | 1-18mm |
| Product series | FP |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 12VDC |
