FMC18A2200000 APEM On-Off Rectangle Rocker Switch SPST 6A
by APEM
SKU 487321
MPN: FMC18A2200000
Availability:
2223 in stock
Save 1%
Original price
£1.78
Original price
£1.78
-
Original price
£1.78
Original price
£1.78
Current price
£1.77
£1.77
-
£1.77
Current price
£1.77

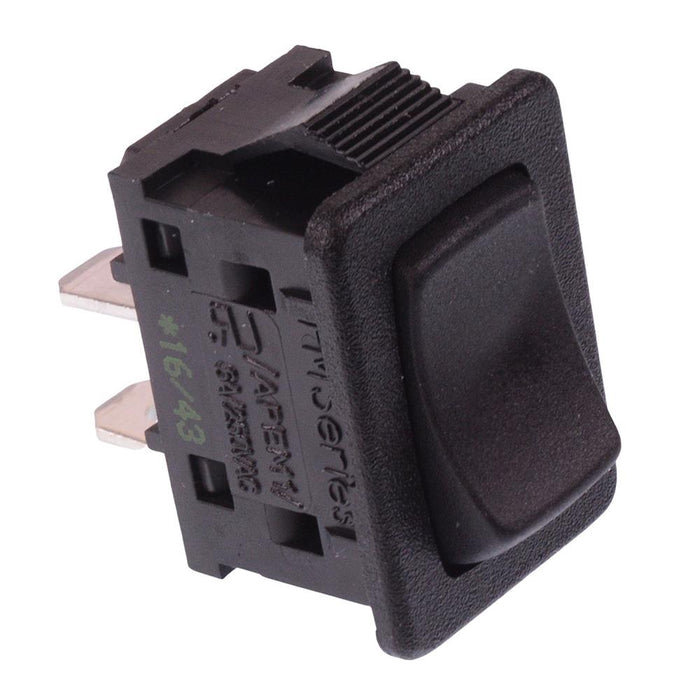

The FMC18A2200000 is a black on-off rocker switch with SPST contacts and quick connect terminals. The switch features a 6A current rating and is suitable for a wide range of panel mount applications.
On-Off function SPST contacts Rating: 6A 250VAC 4.8mm quick connect terminals Panel cut-out: 19.2 x 13mm Silver terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Silver Plated |
| Contact Rating | 6A 250VAC |
| Current Rating | 6A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 19.2 x 13mm |
| Panel Thickness | 3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
