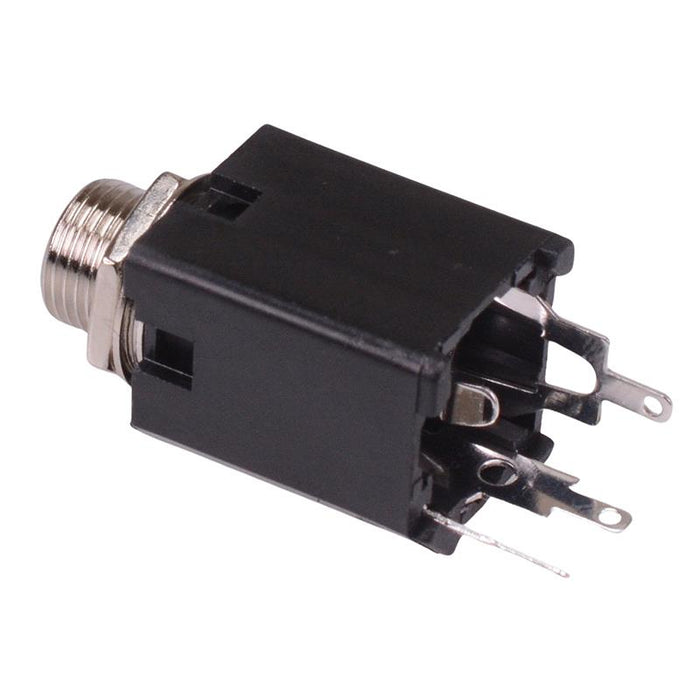

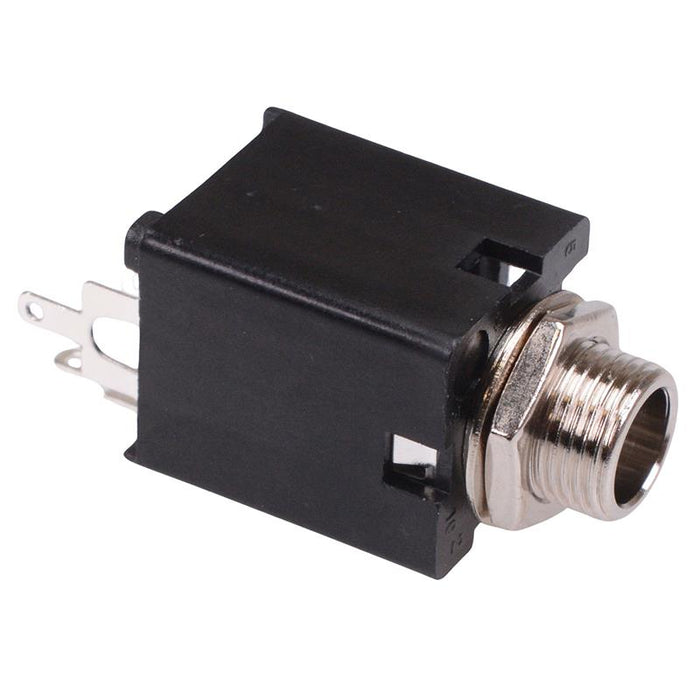

FM6704 6.35mm 1/4" Mono Vertical PCB Jack Socket 3 Contacts CLIFF

by CLIFF
SKU 488939

MPN: FM6704

Availability:
79 in stock
Original price £1.01 - Original price £1.01
Original price
£1.01 Inc VAT
£1.01 - £1.01
Current price £1.01 Inc VAT
The FM6704 is a 1/4" stereo vertical socket by CLIFF, featuring 3 terminals and suitable for PCB mounting. The connector provides 24mm standoff allowing high packing density and the body design allows auto-insertion.

  • 1/4" 6.35mm stereo
  • 3 terminals
  • 1 switching contact and 1 breaking
  • Snap-in PCB mounting
  • Maximum current: 5A
  • Metal nose for grounding chassis to plug and PCB
  • Specification
    Back order lead time 5 Days
    Moq 1
    Colour Black
    Current rating 5A
    Gender Female
    Mounting type PCB
    Operating temperature -10°C to +70°C
    Termination method Solder
