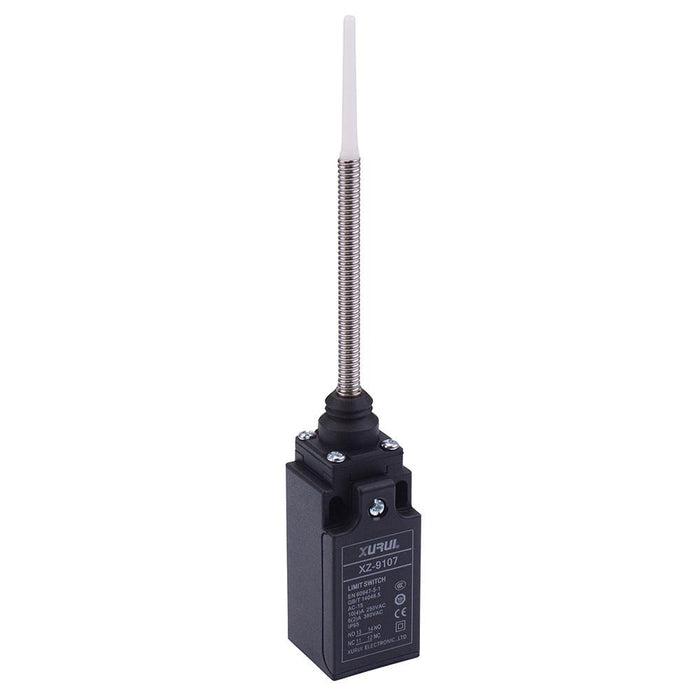

Flexible Rod Industrial Limit Switch IP65 10A 250V
by Xurui
SKU 489606
MPN: XZ-9107
Availability:
26 in stock
Original price
£6.12
-
Original price
£6.12
Original price
£6.12
£6.42
£6.42
-
£6.42
Current price
£6.42
Industrial limit switch featuring a flexible rod actuator and 2NO/2NC contacts. The switch is housed in a lightweight plastic housing and is suitable for a wide range of industrial, automation and mechanical applications.
Rating: 10(4)A/250VAC, 6(2)A 380VAC Push button plunger IP65 protection rating 2NO/NC contacts Enclosed screw terminals Operating force max: 100g Release force min: 30g Dimensions: 195.0 x 30.5 x 30.0mm (height x width x depth)
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPDT |
| Contact Rating | 10A 250VAC |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| MOQ | 1 |
| Number of Positions | 2 |
| Operating Force | 100g Max |
| Operating Temperature | -10°C to +70°C |
| Protection Level | IP65 |
| Release Force | 30g Min |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
