EC5-F Female Gold Plated Connector 40A AMASS
by AMASS
SKU 486716
MPN: EC5-F
Availability:
147 in stock
Original price
£0.85
-
Original price
£0.85
Original price
£0.85
£0.85
£0.85
-
£0.85
Current price
£0.85

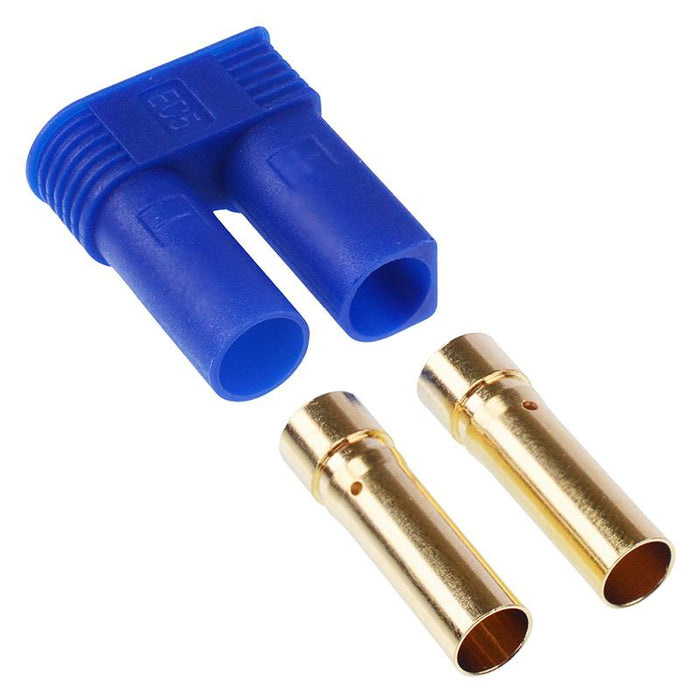

Female EC5 connector featuring a flame retardant nylon housing and gold plated copper contacts. The connectors are rated up to 40A are suitable for a wide range of RC and drone applications.
Manufactured by AMASS Current rating: 40A Contact material: gold plated brass Insulator material: flame retardant UL94-V2 nylon Operating temperature: -20℃ to 120℃
Specification
| Back Order Lead Time | 30 Days |
| Colour | Blue |
| Contact Material | Gold Plated Copper |
| Contact Resistance | ≤0.8mΩ |
| Current Rating | 40A |
| Dielectric Withstand Voltage | 500VDC |
| Gender | Female |
| Housing Material | PA |
| Number of Poles | 2 |
| Operating Temperature | -20°C to 120°C |
