Emergency Stop 22mm Push Button Switch Stainless Steel 5A
SKU 484350
MPN: 484350
Availability:
Only 4 left!
Original price
£17.00
-
Original price
£17.00
Original price
£17.00
Inc VAT
£17.00
-
£17.00
Current price
£17.00
Inc VAT

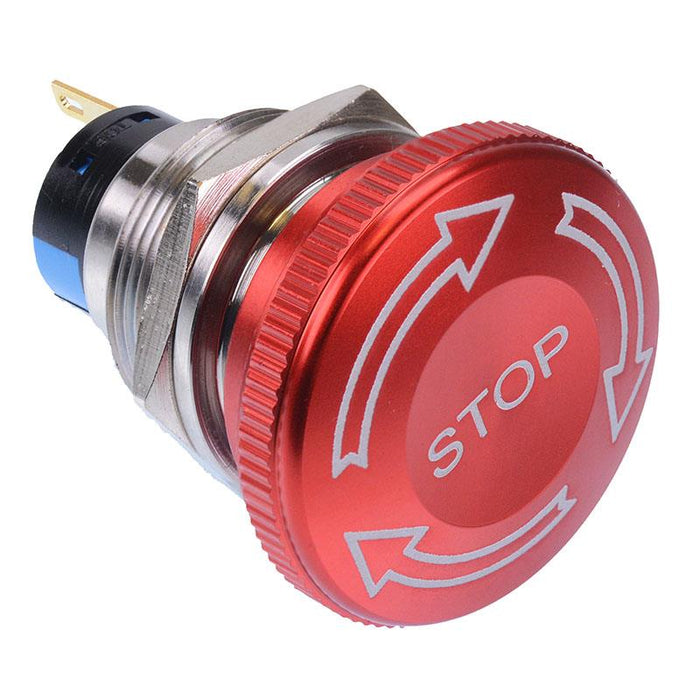

Vandal resistant emergency stop switch manufactured from stainless steel featuring a latching mechanism and twist release. The switch requires a 22mm panel cut-out and is suitable for a range of panel mount applications.
Push to lock in the 'Off' position, twist clockwise to release it Knurled actuator 1NO/1NC contacts Panel cut-out: 22mm Panel thickness: 1-6mm IP65 protection rating Solder 2.8 x 0.5mm terminals Rating: 0.5A 250VAC Body material: stainless steel Dimensions: 51 x 29.5mm (length x diameter)
Specification
| Actuation | Twist Release |
| Back order lead time | 45 Days |
| Colour | Red |
| Contact configuration | 1NC |
| Contact rating | 0.5A 250VAC |
| Current rating | 0.5A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +55°C |
| Panel cut out | 22mm |
| Panel thickness | 1-6mm |
| Protection level | IP65 |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
