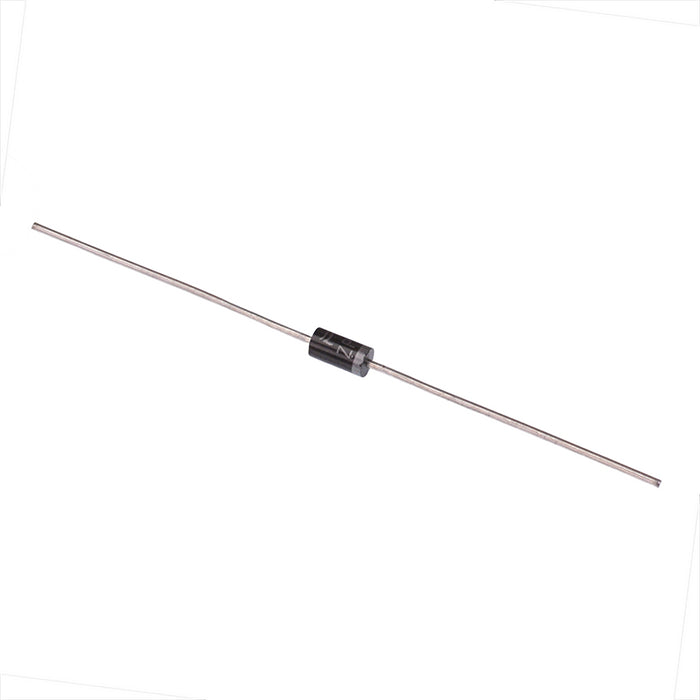

EM513 Rectifier Diode 1A 1600V

by Diotec
SKU 486266

MPN: EM513

Availability:
480 in stock
Original price £0.24 - Original price £0.24
Original price
£0.24 Inc VAT
£0.24 - £0.24
Current price £0.24 Inc VAT
The EM513 is a standard recovery rectifier diode featuring low leakage current and voltage drop. The diode is suitable for mains rectification, power supplies, polarity protection and industrial applications.

  • DO-41 package
  • Repetitive peak reverse voltage: 1600V
  • Maximum average forward rectified current: 1A
  • Peak forward surge current: 30A
  • Specification
    Average rectified current 1A
    Back order lead time 5 Days
    Body dimensions 5.1 x 2.6mm (Length x Diameter)
    Lead dimensions 0.77mm
    Moq 5
    Mounting style Through Hole
    Operating temperature -50°C to 175°C
    Package DO-41
    Packaging Tape
    Peak reverse voltage 1600V
    Peak surge current 30A
