Electronic Dice Project Kit

SKU 488287

MPN: EDICE

Availability:
32 in stock
Original price £7.48 - Original price £7.48
Original price
£7.48 Inc VAT
£7.48 - £7.48
Current price £7.48 Inc VAT

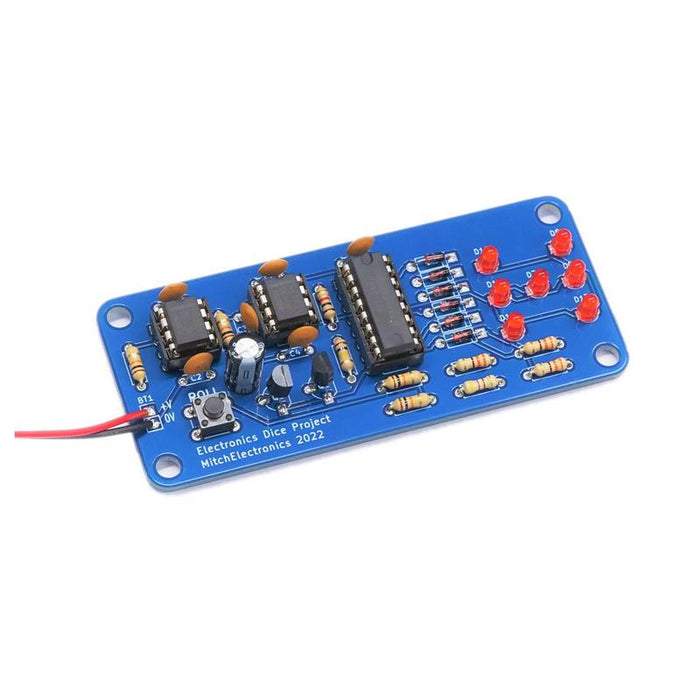

Electronic dice project kit that allows you to build your own fully functional electronic dice with a single roll button and 7 LED output in the shape of standard dice. This kit simulates a dice using three main sub-circuits which is operated using the tactile switch. The kit is perfect for teaching soldering and produces a handy product useful for an endless amount of applications!

  • Battery: 9V PP3 (not included)
  • Operating voltage: 7-16V
  • PCB dimensions: 82 x 33mm
  • RoHS and REACH compliant

  • Instructions / documentation
    What's in the kit?
  • 1 x 16 DIP Socket
  • 2 x 8 DIP Socket
  • 1 x 4017
  • 2 x 555
  • 2 x 2N3904
  • 3 x 330R Resistors
  • 1 x 470R Resistor
  • 1 x 1K Resistor
  • 4 x 10K Resistor
  • 1 x 680K Resistor
  • 6 x 100nF Capacitors
  • 1 x 100uF Capacitor
  • 1 x Tactile Switch
  • 7 x Red LED
  • 6 x 1N4148
  • 1 x PP3 Connector
  • 1 x PCB
  • Specification
    Back order lead time 30 Days
