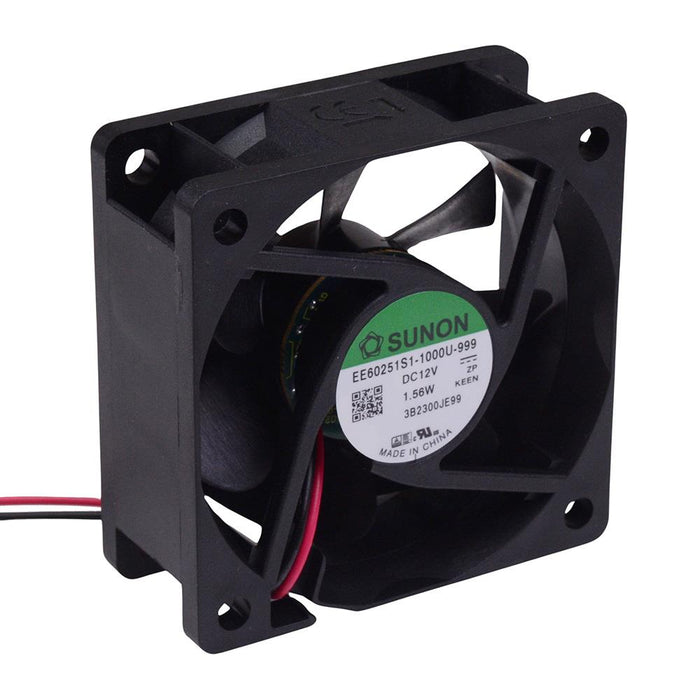

EB60251S1-999 12V DC Brushless Axial Fan 60 x 60 x 25mm
by Sunon
SKU 480028
MPN: EE60251S1-1000U-999
Availability:
40 in stock
Original price
£5.61
-
Original price
£5.61
Original price
£5.61
Inc VAT
£5.61
-
£5.61
Current price
£5.61
Inc VAT
EB60251S1-999 12V axial fan featuring a brushless motor and sleeve bearing providing excellent reliability and improved performance. The fan is housed in a 60 x 60 x 25mm thermoplastic frame and is terminated using the wire leads.
Supply voltage: 12VDC Operating voltage: 4.5-13.8VDC Power consumption: 1.62W Current rating: 0.135A Noise level: 33.5dBA Fan speed: 4500rpm Slide bearing
Specification
| Back order lead time | 5 Days |
| Colour | Black |
| Current rating | 0.122A |
| Efficiency | 39.72m3/h |
| Height | 60mm |
| Length | 60mm |
| Material | Thermoplastic |
| Noise level | 27dBA |
| Operating temperature | -10°C to 70°C |
| Operating voltage | 4.5V to 13.8VDC |
| Power consumption | 1.56W |
| Rotational speed | 4500rpm |
| Supply voltage | 12VDC |
| Type of bearing | Slide |
| Width | 25mm |
