EB40201S2-999 12V DC Brushless Axial Fan 40 x 40 x 20mm

by Sunon
SKU 480027

MPN: EE40201S2-1000U-999

Availability:
45 in stock
Original price £7.32 - Original price £7.32
Original price
£7.32 Inc VAT
£7.32 - £7.32
Current price £7.32 Inc VAT

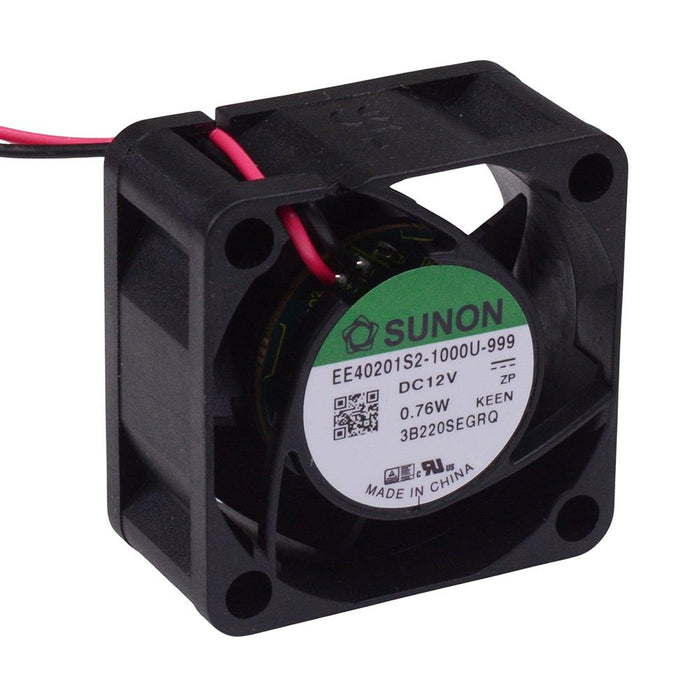

EB40201S2-999 12V axial fan featuring a brushless motor and sleeve bearing providing excellent reliability and improved performance. The fan is housed in a 40 x 40 x 20mm thermoplastic frame and is terminated using the wire leads.

  • Supply voltage: 12VDC
  • Operating voltage: 4.5-13.8VDC
  • Power consumption: 0.76W
  • Current rating: 0.063A
  • Noise level: 21dBA
  • Fan speed: 6200rpm
  • Slide bearing
  • Specification
    Back order lead time 5 Days
    Colour Black
    Current rating 0.063A
    Efficiency 13.01m3/h
    Height 40mm
    Length 40mm
    Material Thermoplastic
    Noise level 21dBA
    Operating temperature -10°C to 70°C
    Operating voltage 4.5V to 13.8VDC
    Power consumption 0.76W
    Rotational speed 6000rpm
    Supply voltage 12VDC
    Type of bearing Slide
    Width 20mm
