EB40100S2-999 5V DC Brushless Axial Fan 40 x 40 x 10mm

by Sunon
SKU 480025

MPN: EE40100S2-1000U-999

Availability:
50 in stock
Original price £5.51 - Original price £5.51
Original price
£5.51 Inc VAT
£5.51 - £5.51
Current price £5.51 Inc VAT

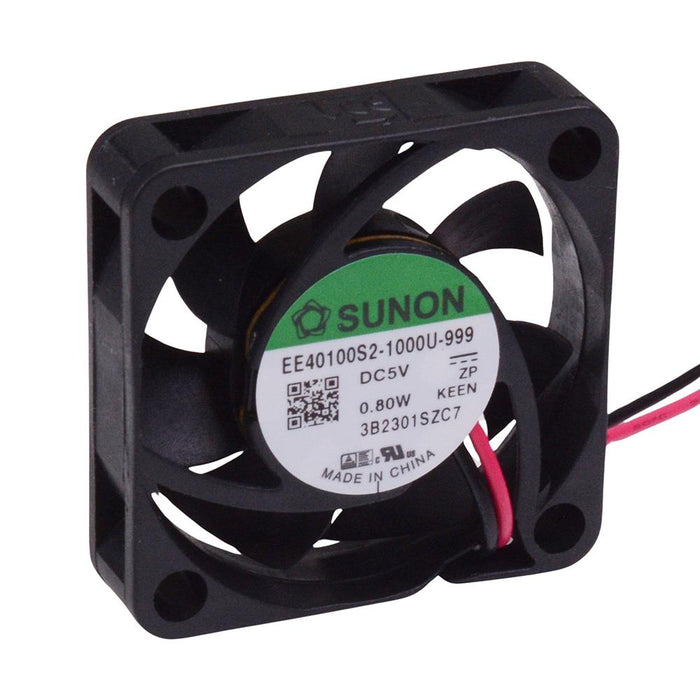

EB40100S2-999 5V axial fan featuring a brushless motor and sleeve bearing providing excellent reliability and improved performance. The fan is housed in a 40 x 40 x 10mm thermoplastic frame and is terminated using the wire leads.

  • Supply voltage: 5VDC
  • Operating voltage: 3.5-6VDC
  • Power consumption: 1W
  • Current rating: 0.205A
  • Noise level: 27dBA
  • Fan speed: 5800rpm
  • Slide bearing
  • Specification
    Back order lead time 5 Days
    Colour Black
    Current rating 0.12A
    Efficiency 11.99m3/h
    Height 40mm
    Length 40mm
    Material Thermoplastic
    Noise level 23dBA
    Operating temperature -10°C to 70°C
    Operating voltage 3.5V to 6VDC
    Power consumption 0.8W
    Rotational speed 6100rpm
    Supply voltage 5VDC
    Type of bearing Slide
    Width 10mm
