Dual-Axis Joystick Module

SKU 552422

MPN: 552422

Availability:
Out of stock
Sold out
Original price £0.88 - Original price £0.88
Original price
£0.88 Inc VAT
£0.88 - £0.88
Current price £0.88 Inc VAT

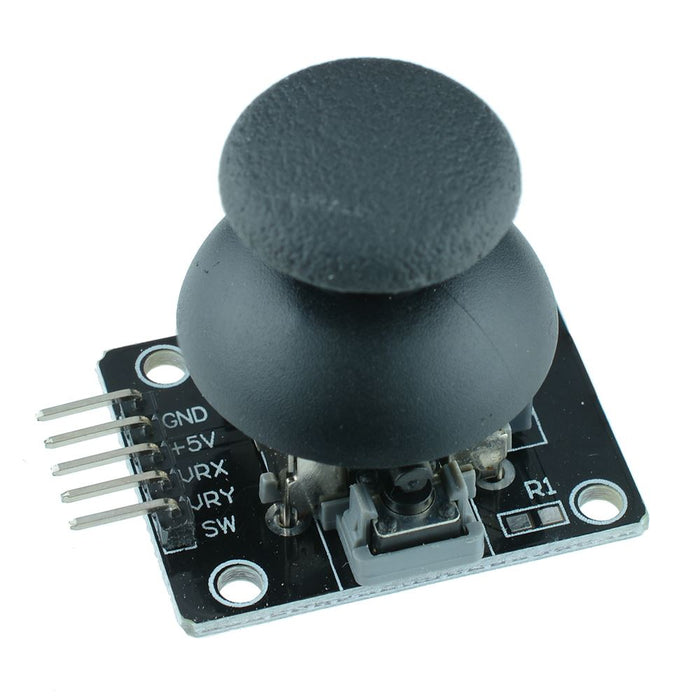

Dual axis module suitable for bringing joystick control to your project. The module is suitable for Arduino, Raspberry Pi and other microcontrollers, The module provides X and Y positions, and features a push button switch when the stick is pressed in.

  • Drive voltage: 5V
  • 2 analog output, 1 digital output
  • 2.54mm pin pitch

  • Pinout
    GND 0V
    5V DC
    X Position
    Y Position
    Switch State
    Specification
    Back order lead time 30 Days
