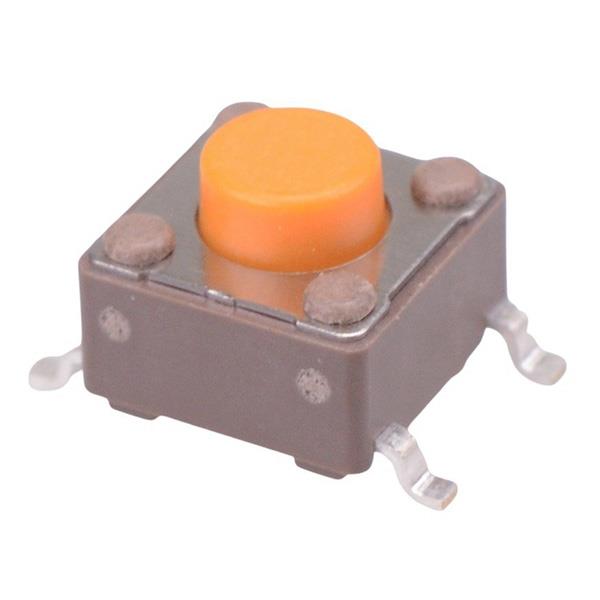

DTSM-62S-V-T/R 5.0mm Height 6 x 6mm Surface Mount Tactile Switch 320gf
by Diptronics
SKU 492494
MPN: DTSM-62S-V-T/R
Availability:
895 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
£0.19
-
£0.19
Current price
£0.19
The DTSM-62S-V-T/R is a vertical tactile switch with a 6mm x 6mm standard package and 5.0mm height. The switch provides a positive tactile feedback and is supplied in tape packaging, suitable for SMT mounting.
Vertical SMT mounting 6mm x 6mm package 5.0mm height Rating: 50mA 12VDC Operating force: 320gf Travel: 0.25mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Salmon |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 5.0mm |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 320gf |
| Operating Temperature | -25°C to +70°C |
| Pitch | 6.95 x 4.5mm |
| Product Series | DTSM-6 |
| Switch Operation | Off-(On) |
| Terminal Type | Surface Mount |
| Voltage Rating | 12VDC |
