DTS648NV APEM 7.3mm PCB Tactile Switch 6x6mm SPST
by APEM
SKU 487779
MPN: DTS648NV
Availability:
4950 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
£0.18
-
£0.18
Current price
£0.18

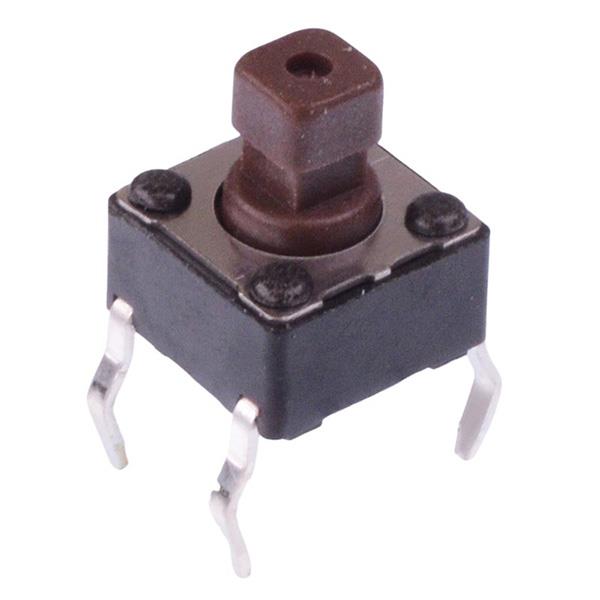

The DTS648NV is a 6x6mm package tactile switch with 7.3mm height suitable for through hole PCB applications. The switch features 50mA 12VDC contact rating and is suitable for a wide range of applications including industrial, instrumentatation, audio equipment etc.
6x6mm package 7.3mm height (includes switch body) 2.8x2.8mm square actuator Contact rating: 50mA 12VDC Operating force: 160gf Terminal pitch: 6.5 x 4.5mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Electrical Life | 200,000 Cycles |
| Height | 7.3mm |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 160gf |
| Operating Temperature | -25°C to +70°C |
| Pitch | 6.5 x 4.5mm |
| Product Series | DTS |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
