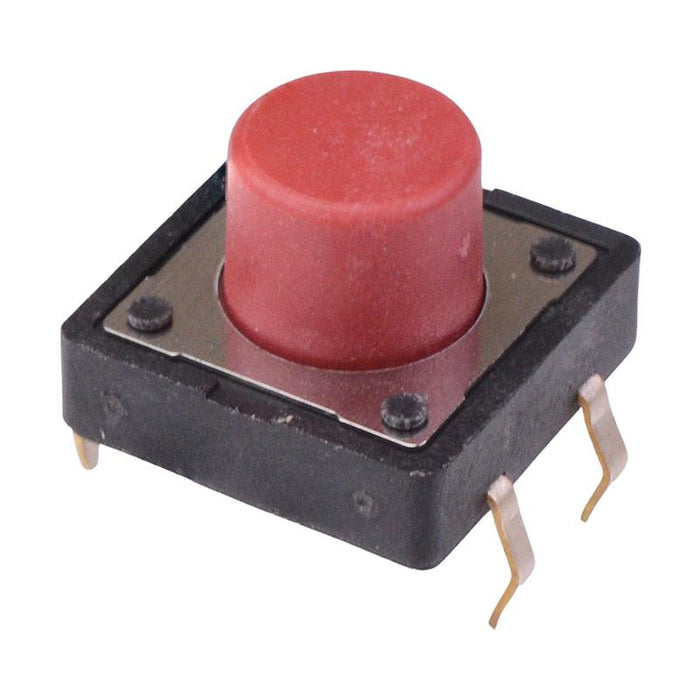

DTS25R APEM 8.5mm PCB Tactile Switch 12x12mm SPST
by APEM
SKU 488034
MPN: DTS25R
Availability:
1487 in stock
Original price
£0.20
-
Original price
£0.20
Original price
£0.20
£0.20
£0.20
-
£0.20
Current price
£0.20
The DTS25R is a 12x12mm package tactile switch with 8.5mm height suitable for through hole PCB applications. The switch features 50mA 12VDC contact rating and is suitable for a wide range of applications including industrial, instrumentatation, audio equipment etc.
12x12mm package 8.5mm height (includes switch body) Contact rating: 50mA 12VDC Operating force: 260gf Terminal pitch: 12.5 x 5.0mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Electrical Life | 200,000 Cycles |
| Height | 8.5mm |
| MOQ | 10 |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 260gf |
| Operating Temperature | -25°C to +70°C |
| Pitch | 12.5 x 5.0mm |
| Product Series | DTS |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
