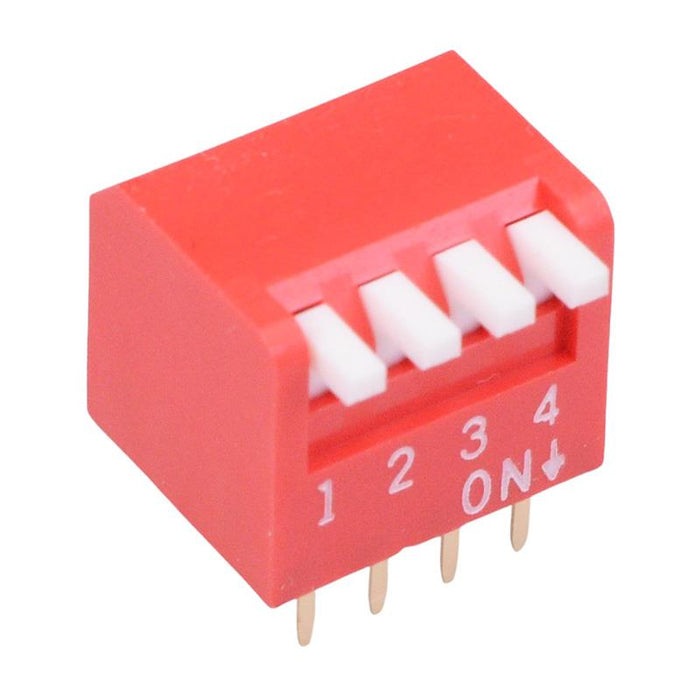

DPL04V 4-Way Long Piano DIP Switch 2.54mm SPST APEM
by APEM
SKU 492486
MPN: DPL04V
Availability:
89 in stock
Original price
£0.74
-
Original price
£0.74
Original price
£0.74
£0.74
-
£0.74
Current price
£0.74
The DPL04V is a 4 way piano style DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.
4 ways Long actuator Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated brass terminals 2.54mm pitch
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Brass |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Operations |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 4 |
| Operating Force | 3.92N Max |
| Operating Temperature | -20°C to +70°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
