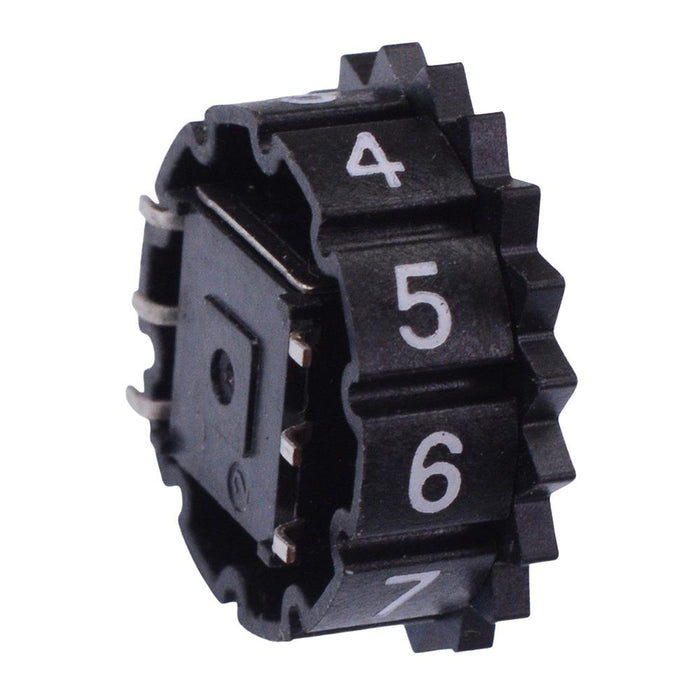

DH101ALSMT001 APEM Left Hand 1-10 PCB Thumbwheel Switch Crown
by APEM
SKU 487952
MPN: DH101ALSMT001
Availability:
67 in stock
Original price
£2.29
-
Original price
£2.29
Original price
£2.29
£2.29
£2.29
-
£2.29
Current price
£2.29
The DH101ALSMT001 is a left hand PCB mounting thumbwheel switch featuring 10 position BCD numbered from 1-10.
With crown 1-10 Left hand PCB mounting Operating voltage: 42VDC Contact load static: 400mA max Contact load dynamic: 100mA max Dimensions: 15 x 6mm (diameter x height)
Specification
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Material | Gold Plated Copper Alloy |
| Current Rating | 400mA |
| Mounting Style | Surface Mount |
| Number of Positions | 10 |
| Operating Temperature | -50°C to +125°C |
| Product Series | DH1 |
| Terminal Type | Solder |
| Voltage Rating | 42VDC |
