Cylindrical Reed Switch NO 500mA 400V - S1476, PTAP 470/30

by Comus
SKU 552594

MPN: S1476

10 in stock
Original price £12.94 - Original price £12.94
Original price
£12.94 Inc VAT
£12.94 - £12.94
Current price £12.94 Inc VAT

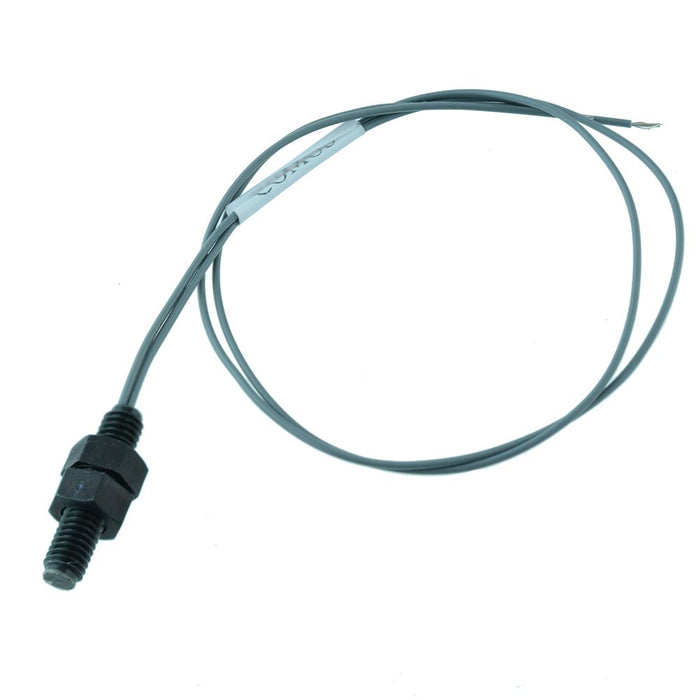

The S1476 is a cylindrical reed switch featuring normally open contacts, designed to provide a low cost solution to to position or limit sensing applications.

  • M6 thread
  • Black acetal case
  • Normally open contacts
  • Maximum switching voltage: 400VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10W/VA
  • Switching distance: 3mm min
  • 2 x 0.22mm² PVC insulated grey wire
  • Specification
    Back order lead time 180 Days
    Carry current 1A
    Contact configuration SPST-NO
    Material Black Acetal
    Maximum switching capacity 10W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 400VAC
    Operating temperature -20°C to +85°C
