Cylindrical Reed Switch NC 300mA 100V - PRB 130/30, S1479

by Comus
SKU 552595

MPN: S1479

Availability:
14 in stock
Original price £6.97 - Original price £6.97
Original price
£6.97 Inc VAT
£6.97 - £6.97
Current price £6.97 Inc VAT

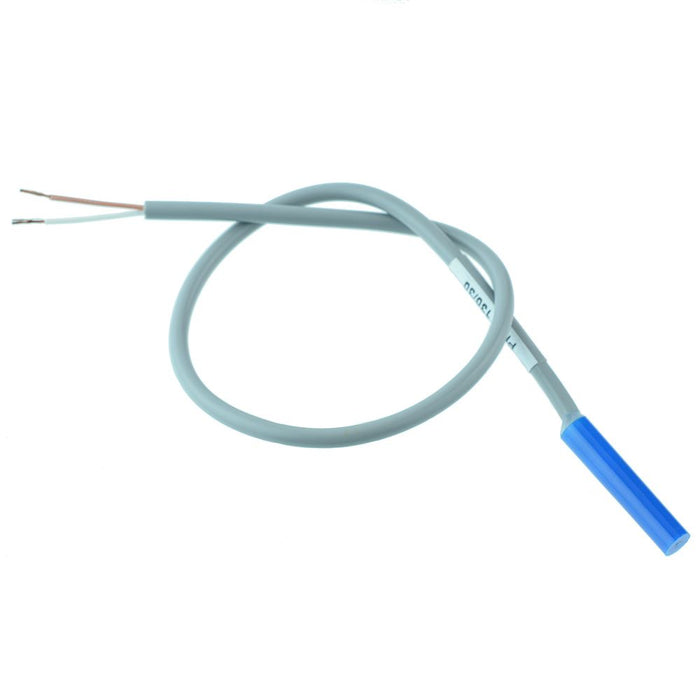

The PRB 130/30 is a prewired cylindrical reed switch featuring normally closed contacts, moulded from blue Nylon 66. The switch is suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: PRM
  • Normally closed contacts
  • Maximum switching voltage: 100VAC
  • Maximum switching current: 0.3A
  • Maximum switching capacity: 10W/VA
  • Switching distance: 3mm min
  • 2 x 0.14mm² PVC covered grey and insulated brown / white
  • Specification
    Back order lead time 180 Days
    Carry current 1A
    Contact configuration SPST-NC
    Diameter 6mm
    Material Nylon 66
    Maximum switching capacity 100W/VA
    Maximum switching current 0.3A
    Maximum switching voltage 100VAC
    Operating temperature -20°C to +85°C
