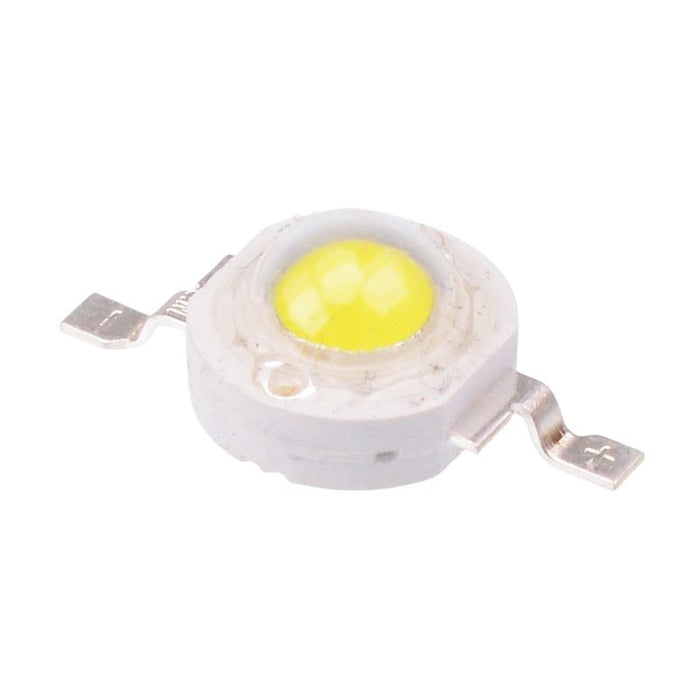

Cool White 1W High Power LED 120lm 135°
by Luckylight
SKU 490469
MPN: HP60MWG
Availability:
115 in stock
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
£0.59
£0.59
-
£0.59
Current price
£0.59
Cool white high power 1W LEDs featuring a high luminous flux and excellent energy efficiency. The LEDs feature a low profile design with a small package suitable for a range of applications including backlighting, general illumination and indication.
Luminous flux: 120lm Colour temperature: 6500K Viewing angle: 135° Forward voltage: 3.2V Forward current: 350mA, 500mA peak Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 40 Days |
| Colour | Cool White |
| Colour Temperature | 6500K |
| Diameter | 8.0mm |
| Forward Current | 350mA |
| Forward Voltage | 3.2V |
| Lens Colour | Clear |
| Lens Shape | Dome |
| Luminous Flux | 120lm |
| Luminous Intensity | 120lm |
| MOQ | 1 |
| Mounting Style | Surface Mount |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 85°C |
| Packaging | Bulk |
| Power Dissipation | 1330mW |
| Power Rating | 1W |
| Viewing Angle | 135° |
